Pacifica V6-3.8L VIN L (2005)
Starting and Charging
Power and Ground Distribution
Electrical Accessory Panel / Locations
Page 4999
Page 3

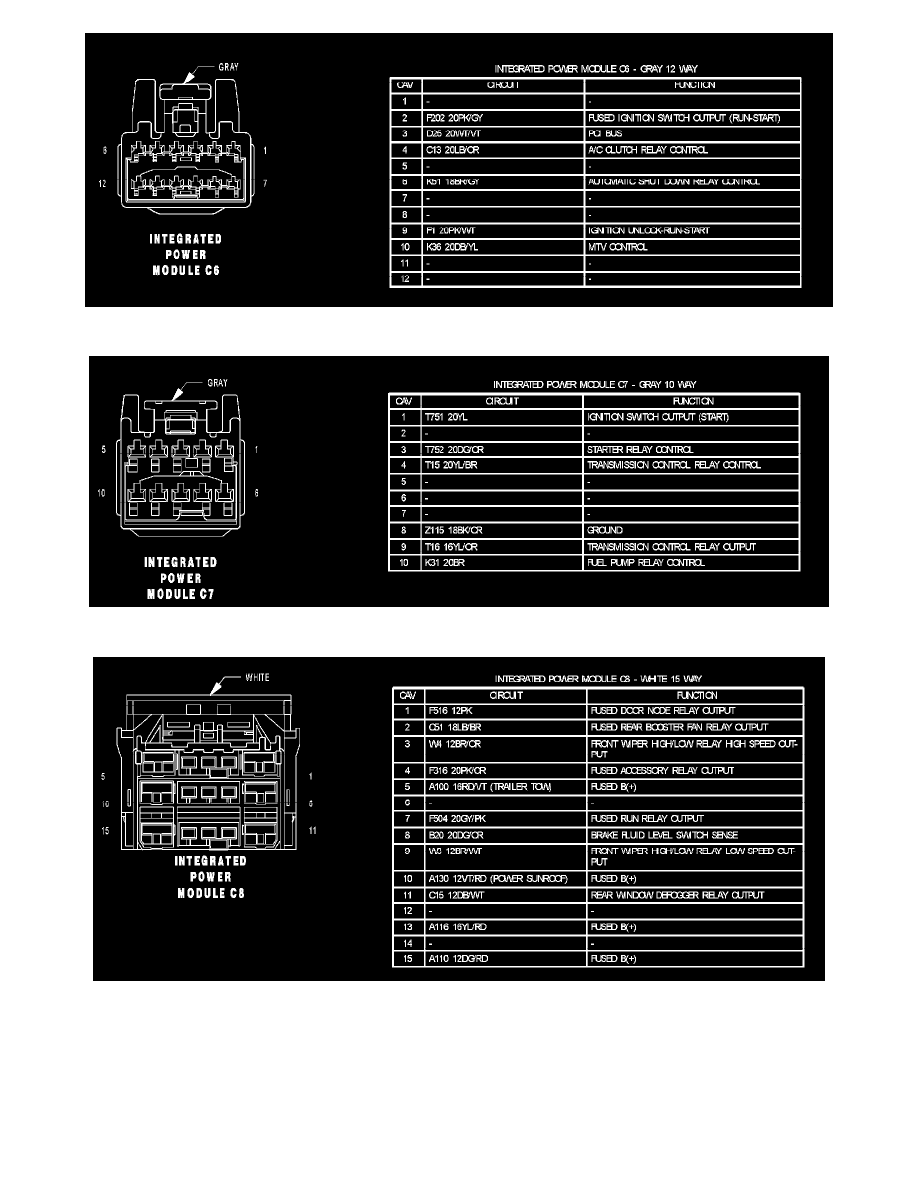

Integrated Power Module C6
Integrated Power Module C7
Integrated Power Module C8
Starting and Charging
Power and Ground Distribution
Electrical Accessory Panel / Locations
Page 4999
