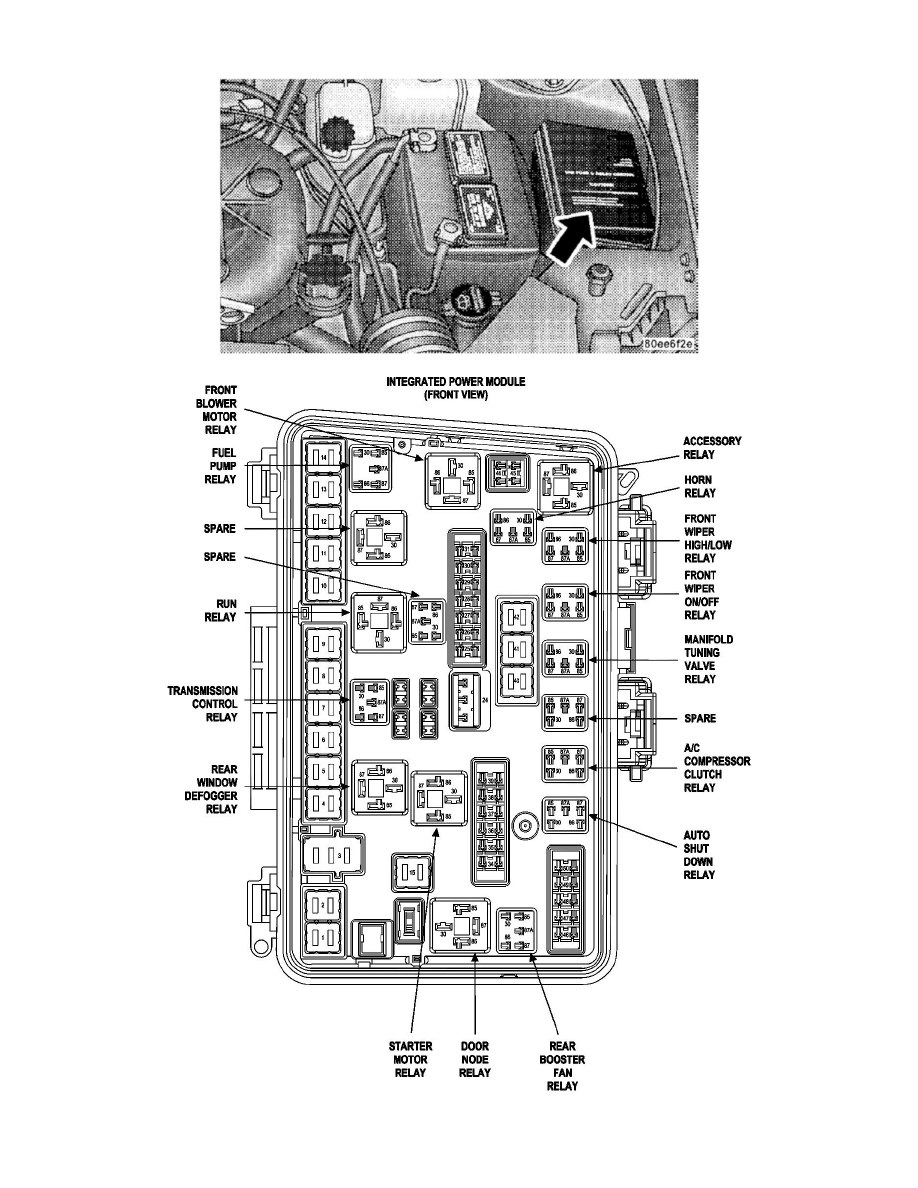

Relay Box: Locations

Starting and Charging
Power and Ground Distribution
Relays and Modules - Power and Ground Distribution
Relay Box
Component Information
Locations
