Pacifica V6-3.8L VIN L (2005)

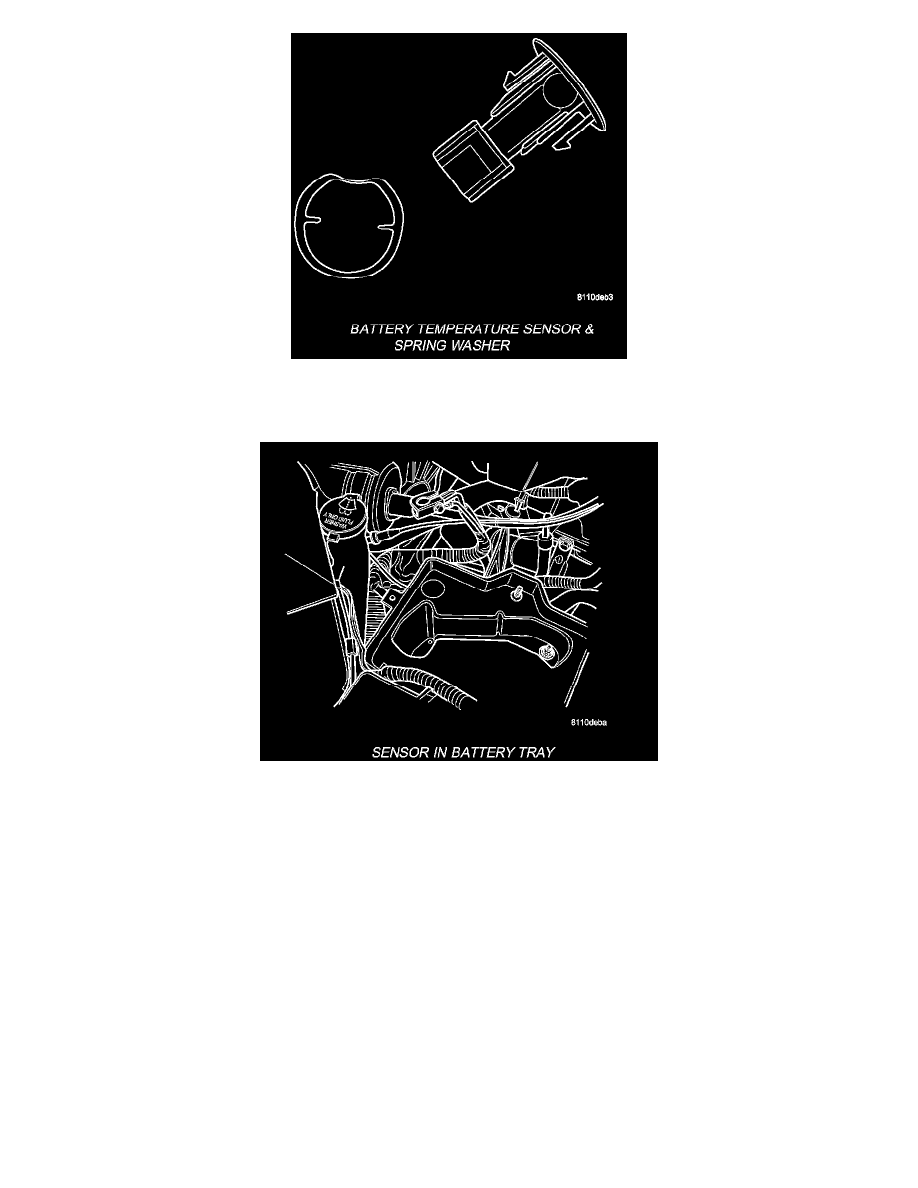

Battery Temperature Sensor And Spring Washer
1. Install the Battery Temperature Sensor to the battery tray. Make sure that the spring is installed with the sensor.
Sensor In Battery Tray
2. Connect the Battery Temperature Sensor electrical connector.
3. Make sure that the sensor moves vertically in the battery tray by pushing on the sensor. The sensor should move with each push and return to the
original location after pressure is removed.
4. Install battery to battery tray.
5. Connect the battery positive cable then the negative cable.
