Pacifica V6-3.8L VIN L (2005)

Page 3
background image

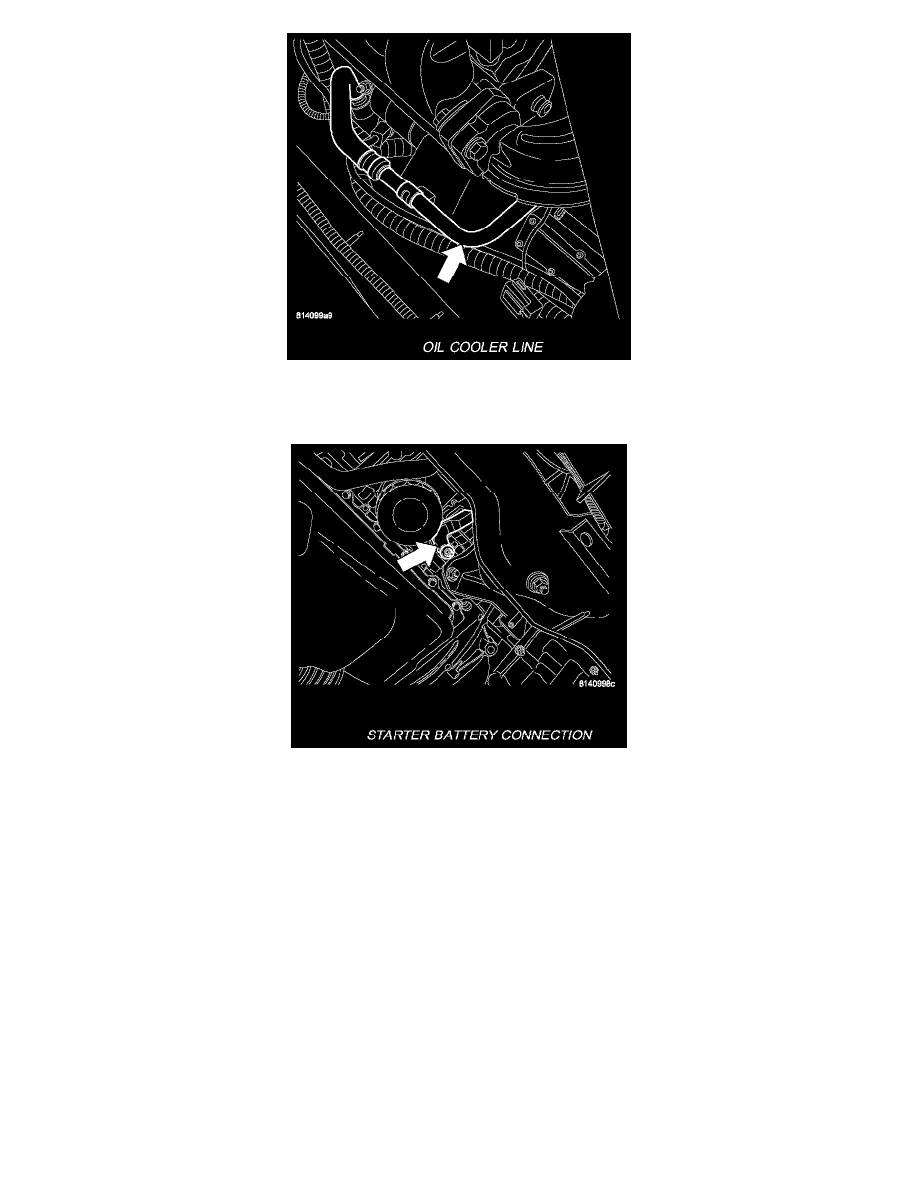

Oil Cooler Line

8. Remove bolt from oil cooler line bracket in front motor mount.

Starter Battery Connection

9. Remove the battery positive cable from starter motor.
