Pacifica V6-3.8L VIN L (2005)

Page 8
background image

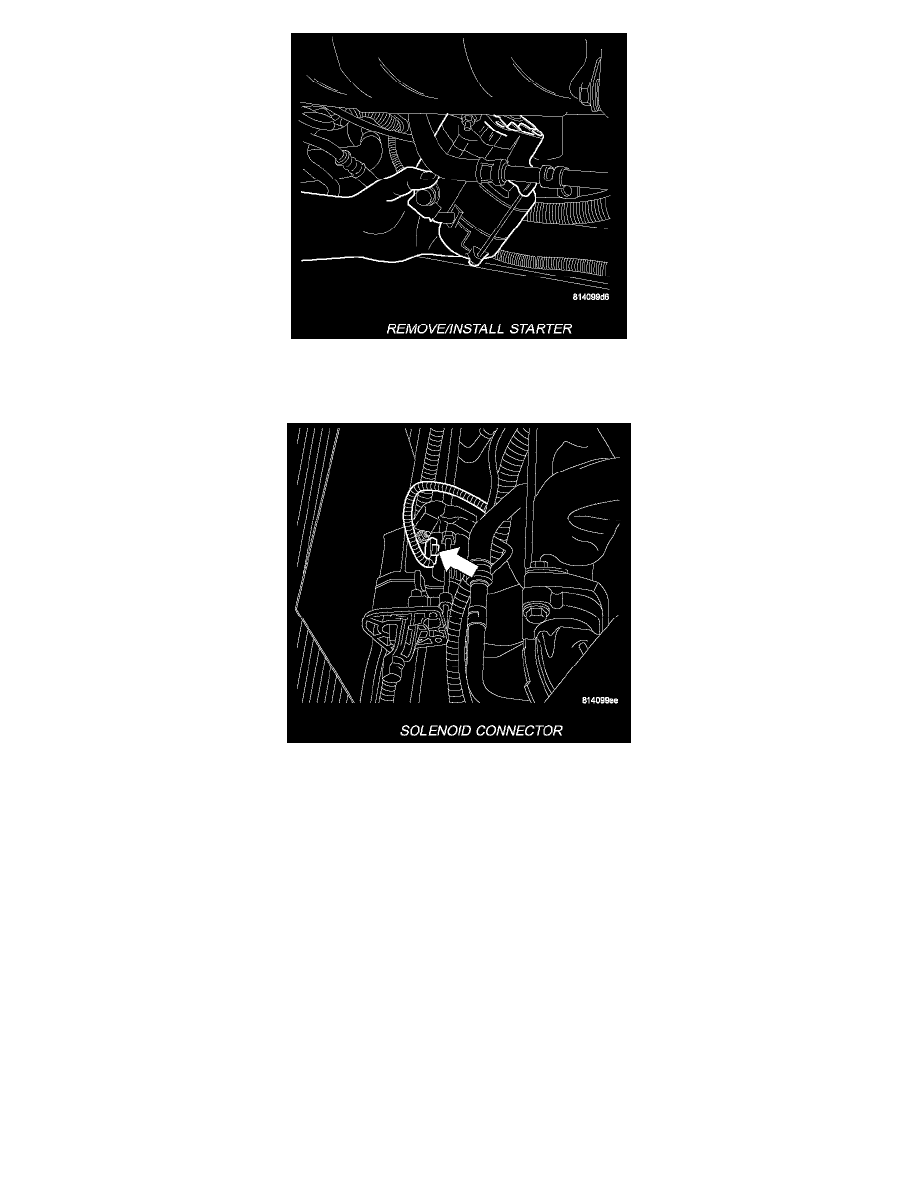

Remove/Install Starter

2. Place starter on lower crossmember.

Solenoid Connector

3. Connect the starter solenoid connector to starter.
