Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-1444010.png)

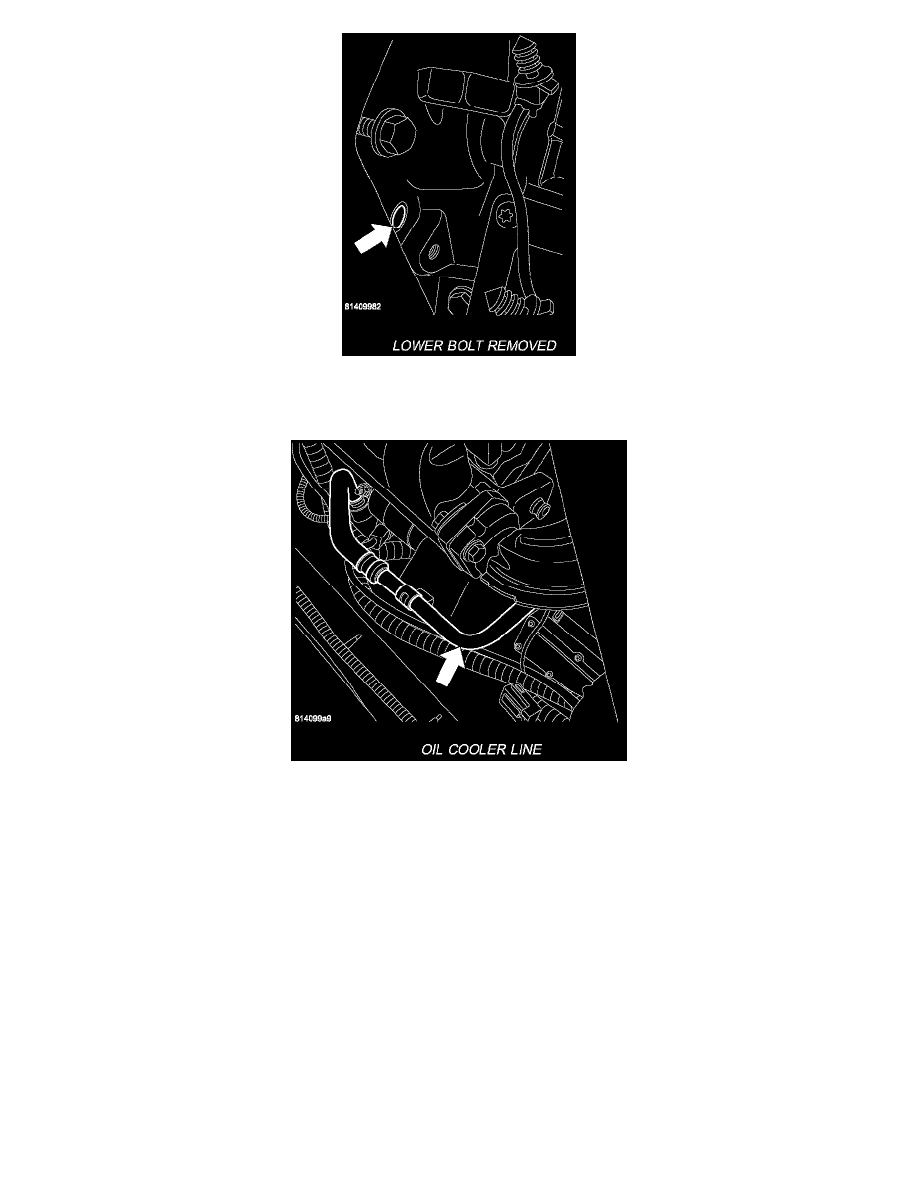

Lower Bolt Removed
7. Loose install the lower starter bolt, tighten 3 bolts to 47 N.m (35 ft. lbs.).
Oil Cooler Line
8. Install oil cooler bracket bolt and tighten.
9. Install fan module.
Lower Bolt Removed
7. Loose install the lower starter bolt, tighten 3 bolts to 47 N.m (35 ft. lbs.).
Oil Cooler Line
8. Install oil cooler bracket bolt and tighten.
9. Install fan module.
