Pacifica V6-3.8L VIN L (2005)

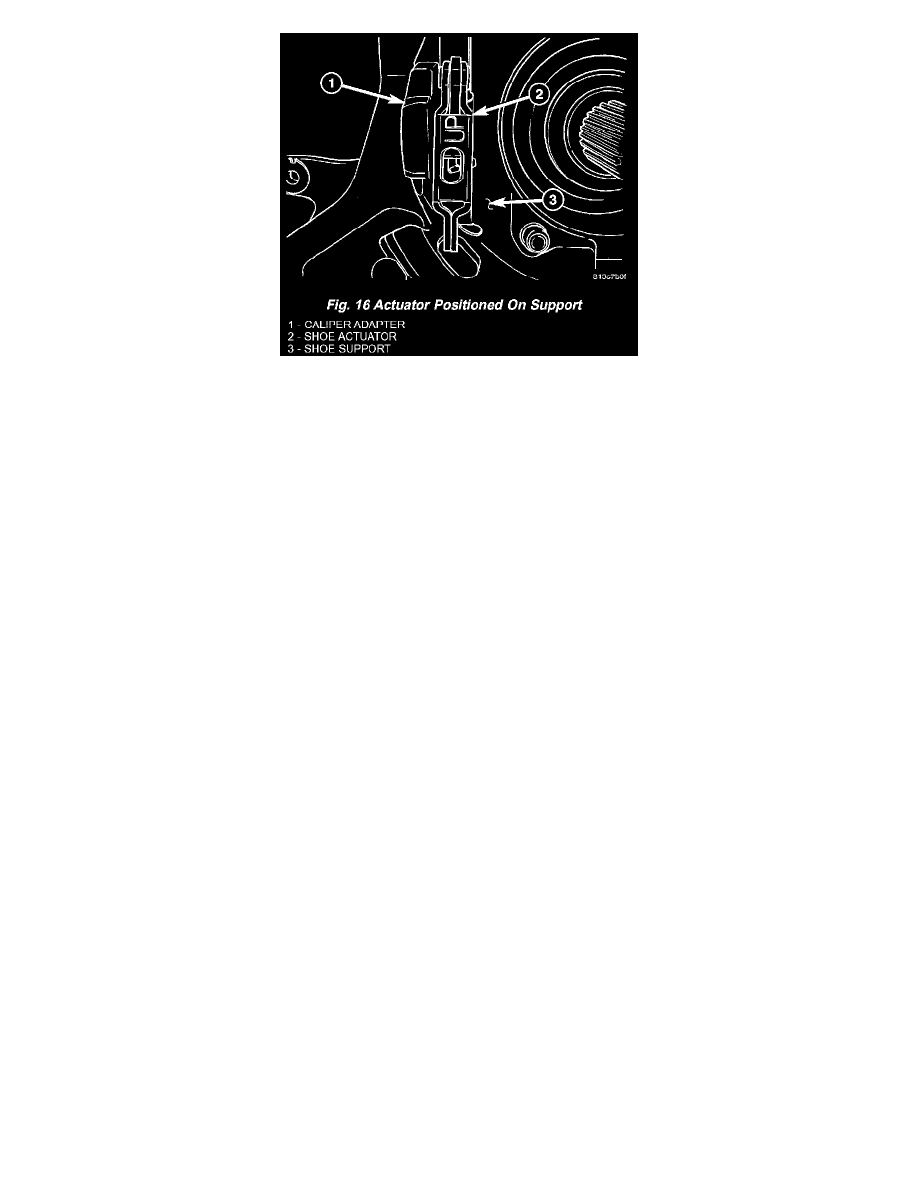

14. Install shoe actuator on end of parking brake cable between parking brake shoes (Fig. 8). Make sure actuator is positioned with word "UP" facing
outward (Fig. 16).
15. Properly align shoes with actuator, then install parking brake shoe return spring (Fig. 7).
16. Install bolt securing parking brake cable to knuckle (Fig. 6). Tighten bolt to 28 Nm (21 ft. lbs.) torque.
17. Install hub and bearing with wheel speed sensor as well as all components necessary to access it.
18. Lower vehicle.
19. Unlock automatic adjuster in parking brake lever.
20. Adjust parking brake shoes as necessary.
21. Position vehicle on alignment rack/drive-on hoist. Raise vehicle as necessary to access mounting bolts.
22. Tighten fasteners at knuckle (vehicle at curb height) as follows:
-
Camber Link - 95 Nm (70 ft. lbs.) torque.
-
Compression Link - 81 Nm (60 ft. lbs.) torque.
-
Stabilizer Link - 61 Nm (45 ft. lbs.) torque.
-
Tension Link - 119 Nm (88 ft. lbs.) torque.
-
Toe Link - 108 Nm (80 ft. lbs.) torque.
23. Perform wheel alignment.
