Pacifica V6-3.8L VIN L (2005)

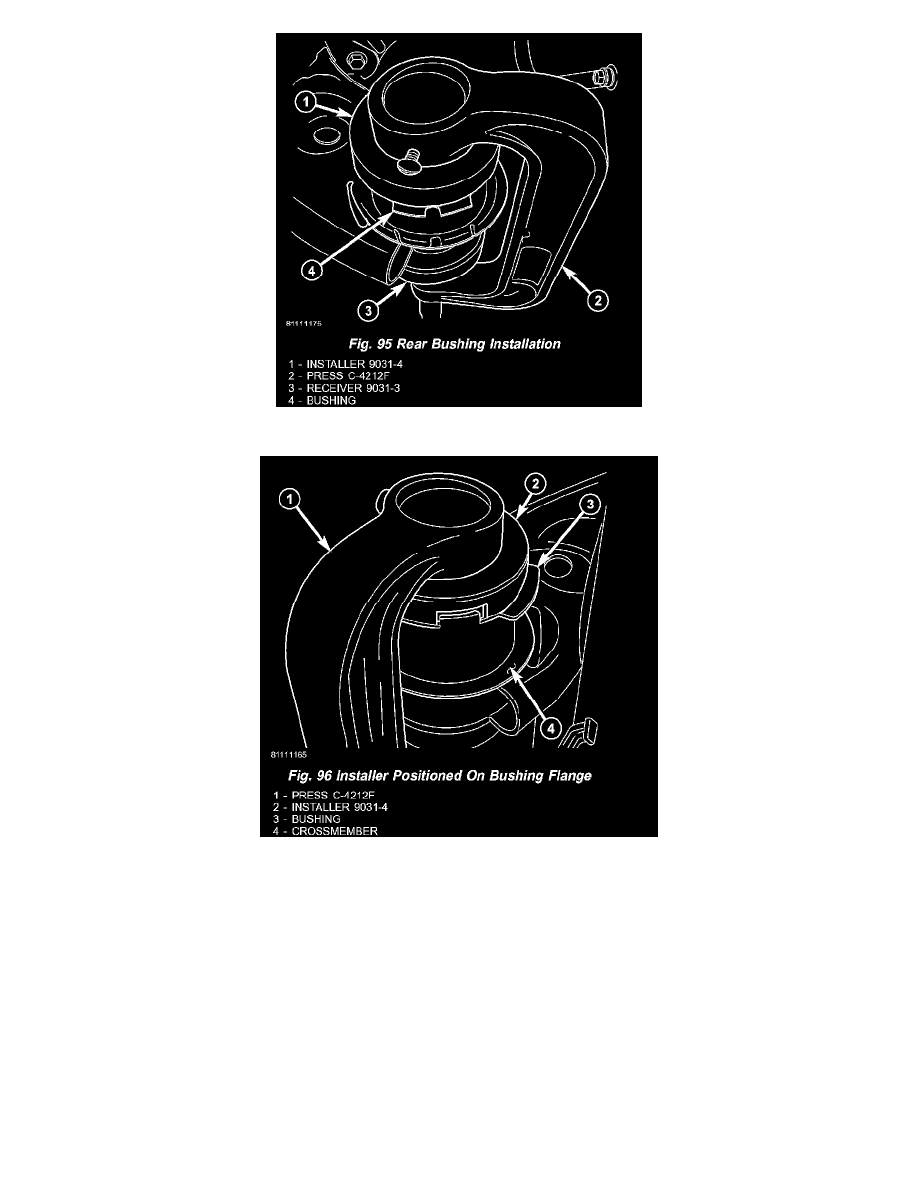

Fig. 95
Fig. 96
2. Assemble tools over bushing and crossmember as shown (remember crossmember is upside-down)(Fig. 95). Ensure Installer, Special Tool 9031-4,
is positioned to match cutout with can flange on bushing (Fig. 96).
3. Using hand tools, tighten Press screw-drive, pressing bushing into crossmember. Install bushing until bushing can flange contacts surface of
crossmember.
4. Remove tools.
5. Verify bushing closely lines up with reference marks applied during removal.
6. Turn rear suspension module right-side-up and center it on jack in same position as upon removal. Secure crossmember to jack.
7. Raise crossmember to body mounting points. As crossmember is raised, slide propeller shaft onto alignment pin on end of rear driveline module
input flange and align shocks with pockets in spring links.
8. Continue to raise crossmember with jack until two crossmember mounting bolts can be installed (Fig. 60). Install left side crossmember mounting
bolts, but not the right side bolts (Fig. 60). It is not necessary to tighten bolts at this point.
CAUTION: To avoid damaging other components of vehicle, do not lower crossmember any further than necessary to install coil spring.
9. Slowly lower jack allowing right side of crossmember to drop. Do not lower jack at a fast rate. Lower jack just enough to allow spring Installation.
