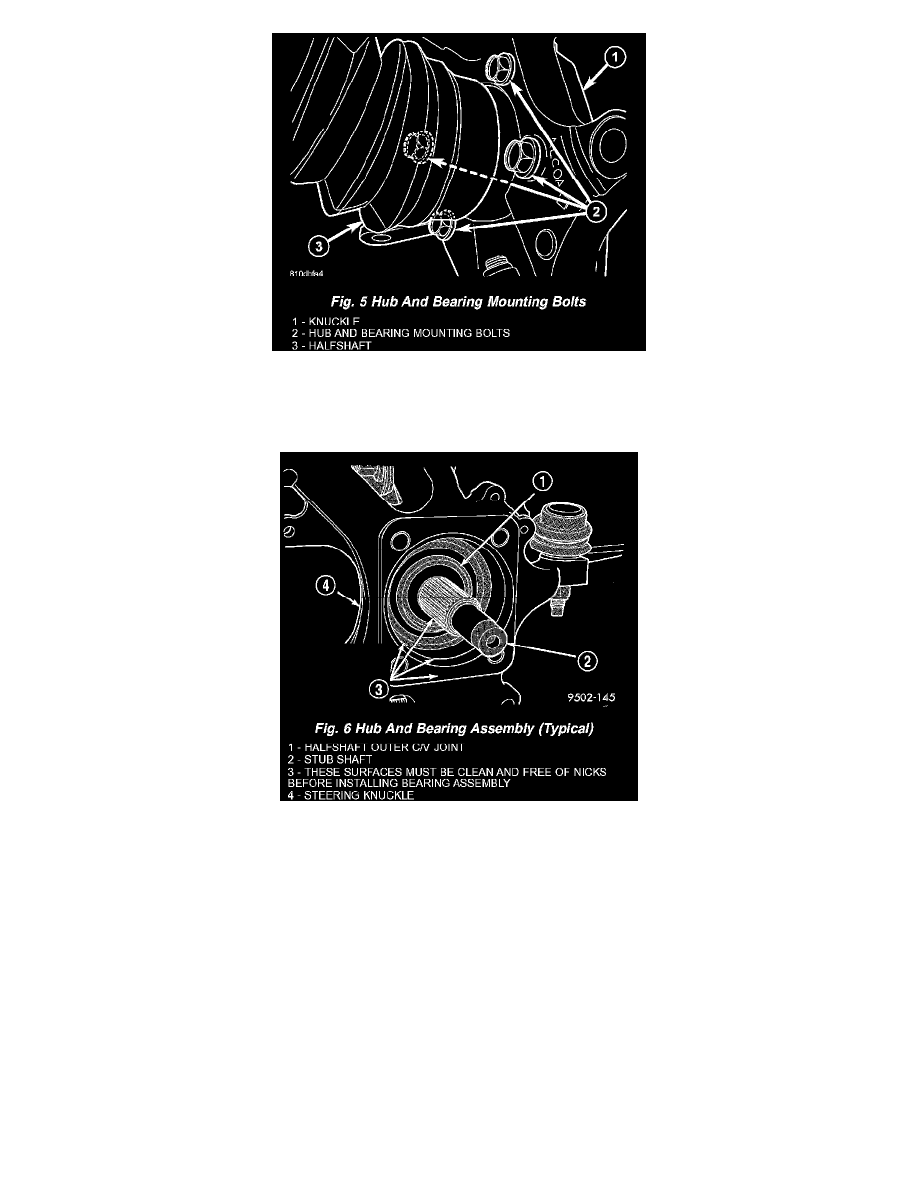

11. Remove four hub and bearing mounting bolts from rear of steering knuckle (Fig. 5).
12. Remove hub and bearing with wheel speed sensor from steering knuckle.
INSTALLATION
CAUTION: Hub and bearing mounting surfaces on steering knuckle and stub shaft (Fig. 6) must be smooth and completely free of foreign material
or nicks prior to installing hub and bearing assembly.
1. Install hub and bearing onto halfshaft stub shaft and into steering knuckle until squarely seated on face of steering knuckle.
2. Install four hub and bearing mounting bolts from rear of knuckle. Progressively and equally tighten all four mounting bolts using a crisscross
pattern. Tighten mounting bolts to 65 Nm (45 ft. lbs.) torque.
3. Place wheel speed sensor cable grommet in clip at knuckle (Fig. 4). Close clip.
4. Attach wheel speed sensor routing bracket to strut assembly (Fig. 3). Tighten screw to 13 Nm (115 inch lbs.) torque.
5. Clip wheel speed sensor connector and routing clip to frame rail outer reinforcement (Fig. 2).
6. Connect vehicle wiring harness to wheel speed sensor connector (Fig. 2).
7. Install brake rotor, then install disc brake caliper and adapter assembly.
8. Verify that wheel speed sensor is not routed improperly allowing cable to come in contact with brake rotor or other moving parts.
9. Install washer and hub nut on end of halfshaft stub shaft (Fig. 1). With aid of a helper applying brakes to keep front hub from turning, tighten hub
nut to 244 Nm (180 ft. lbs.) torque.
10. Install spring washer and hub nut lock over hub nut and stub shaft. Install a NEW cotter pin securing nut lock in place and tightly wrap cotter pin
prongs around nut lock.
11. Install tire and wheel assembly. Tighten wheel mounting nuts to a torque of 135 Nm (100 ft. lbs.).
12. Lower vehicle.
13. Pump brake pedal several times to ensure vehicle has a firm brake pedal before moving vehicle.
