Pacifica V6-3.8L VIN L (2005)

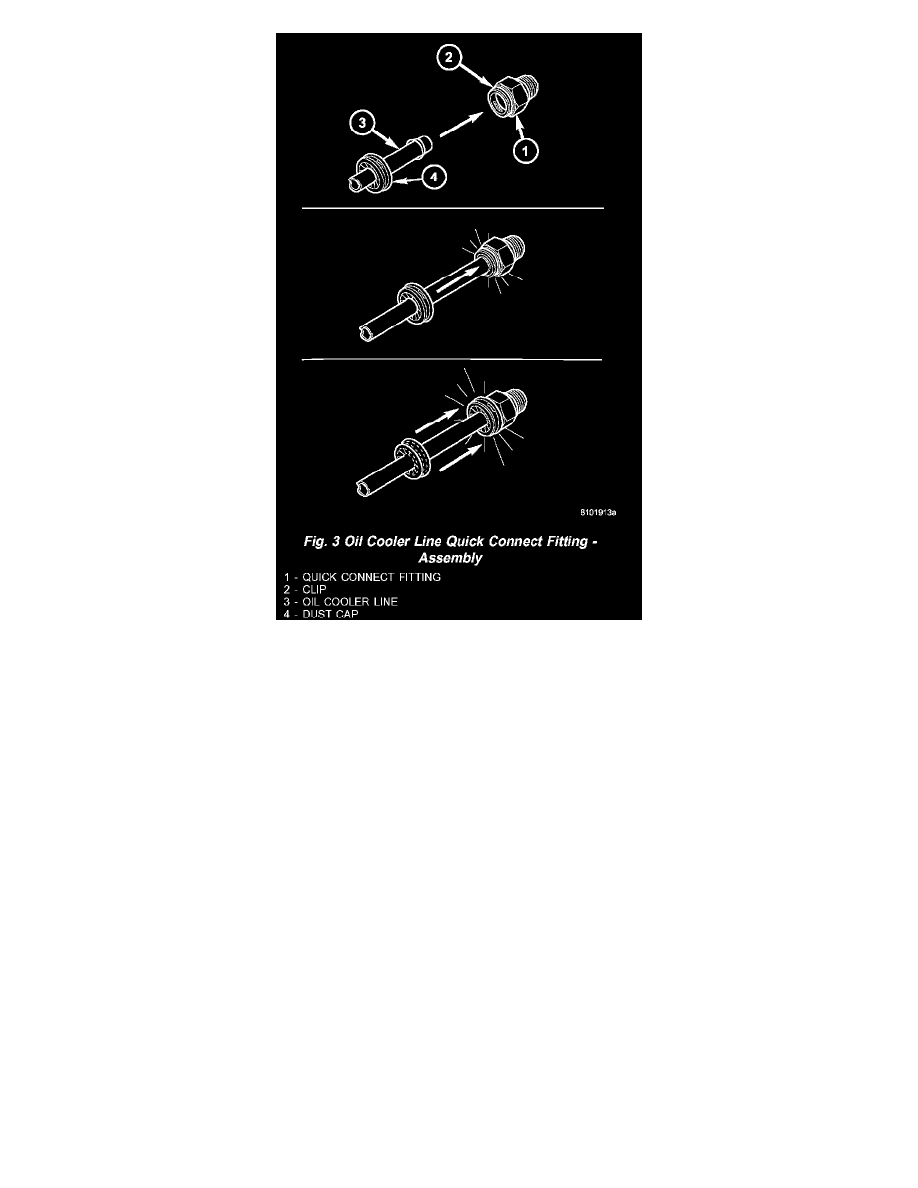

2) Push in on transmission cooler line until a click" is heard or felt (Fig. 3).
3) Slide dust cap down the transmission cooler line and snap it over the quick connect fitting until it is fully seated and rotates freely (Fig. 3). Dust
cap will only snap over quick connect fitting when the transmission cooler line is properly installed.
NOTE: If dust cap will not snap into place, repeat assembly step #2.
INSPECTION
Inspect all hoses, tubes, clamps and connections for leaks, cracks, or damage. Replace as necessary. Use only approved transmission oil cooler hoses
that are molded to fit the space available.
Inspect the air-to-oil cooler for leaks, loose mounts, or damage. Replace as necessary.
