Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-1190001.png)
Seals and Gaskets: Service and Repair
SEAL OIL PUMP
REMOVAL
1. Remove transaxle from vehicle

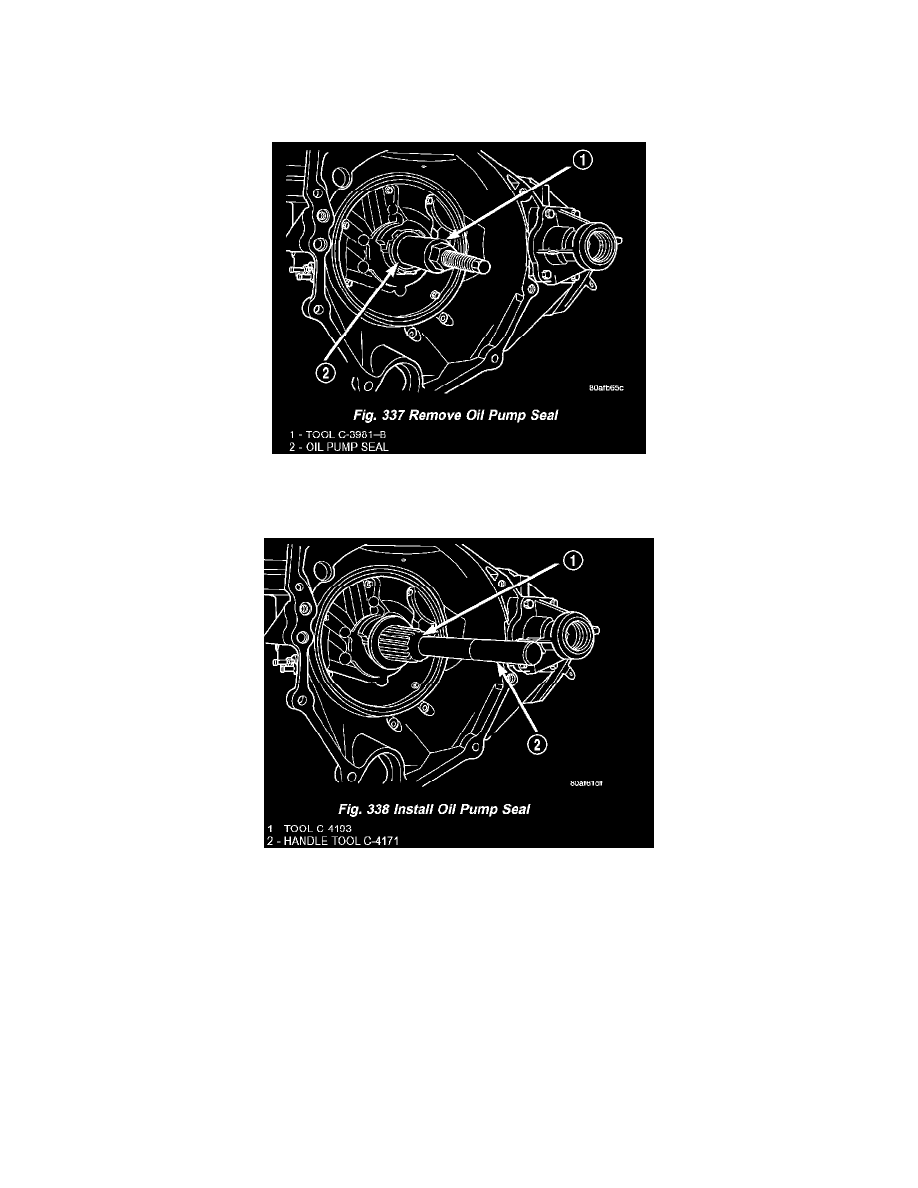

2. Using Tool C-398 1 -B. remove oil pump seal (Fig. 337).
INSTALLATION
1. Using Tool C-4193, install oil pump seal (Fig. 338).
2. Install transaxle to vehicle
