Pacifica V6-3.8L VIN L (2005)
Axle Shaft: Service and Repair
Rear
REMOVAL
NOTE: Rear suspension and drivetrain design require this procedure to be performed on a "drive-on" hoist, as the front and rear suspension needs to
be compressed to ride height to facilitate rear halfshaft removal.
1. Place vehicle on drive-on hoist in Park.
2. Remove rear wheel center cap.

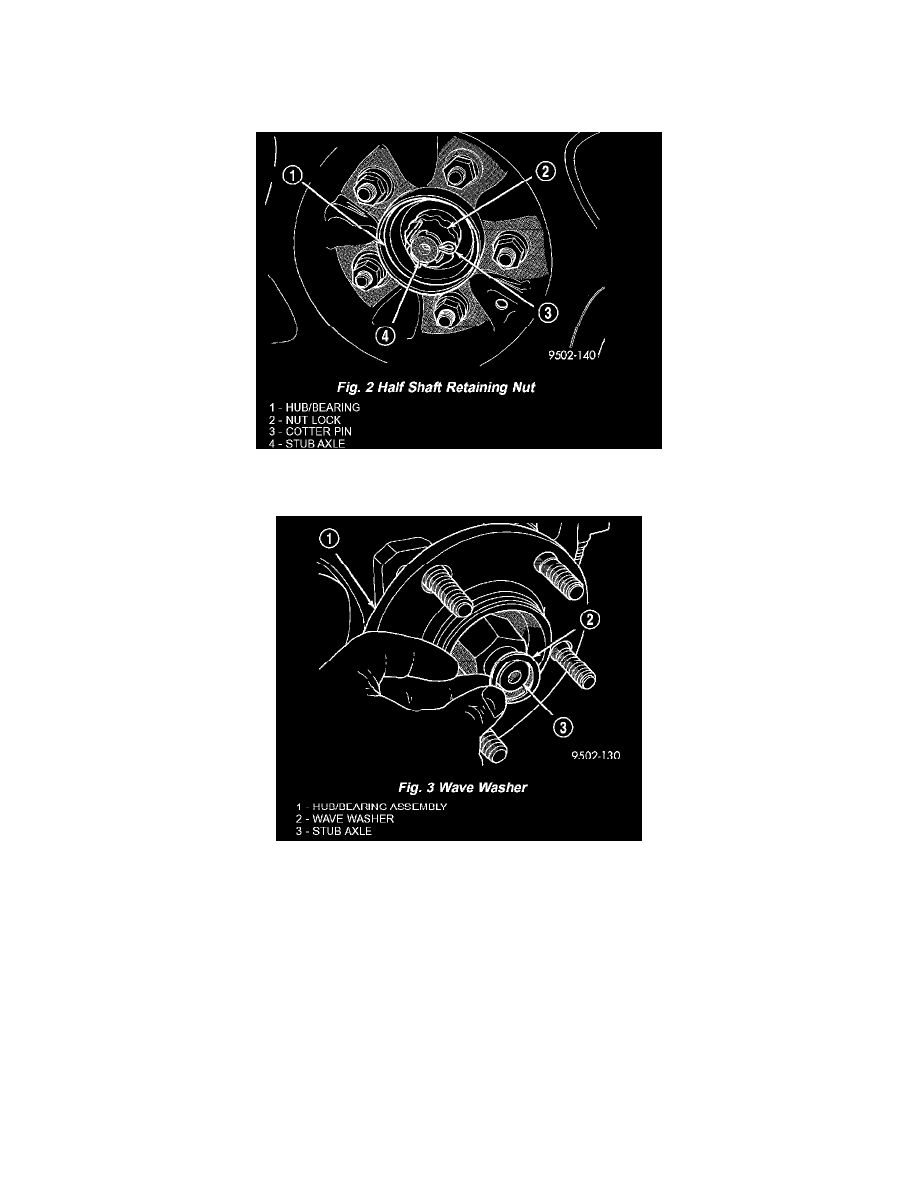

3. Remove cotter pin, nut lock, and spring washer (Fig. 1).
4. Remove hub nut and washer.
5. Raise vehicle on hoist.
6. Remove exhaust system center hanger (at propeller shaft bearing/support).
7. Disconnect exhaust system at rear-most hanger and lower.
8. Lower exhaust system at least 254 mm (10 inch). Support system with suitable wire or rope.
9. Index propeller shaft and rear driveline module flanges using paint mark, chalk, etc. for installation reference.
10. Remove three (3) propeller shaft-to-driveline module bolts. Do not attempt to disconnect shaft from module, as it will be disconnected upon
lowering driveline module.
11. Support driveline module with transmission jack (or equivalent) (Fig. 2).
12. Using suitable screwdriver, partially dislodge halfshaft (side being removed) from differential.
