Pacifica V6-3.8L VIN L (2005)
Seals and Gaskets: Service and Repair
Differential Carrier Seal
REMOVAL
NOTE: The Power Transfer Unit must be removed from the vehicle to replace this seal.
1. Remove PTU from transaxle.

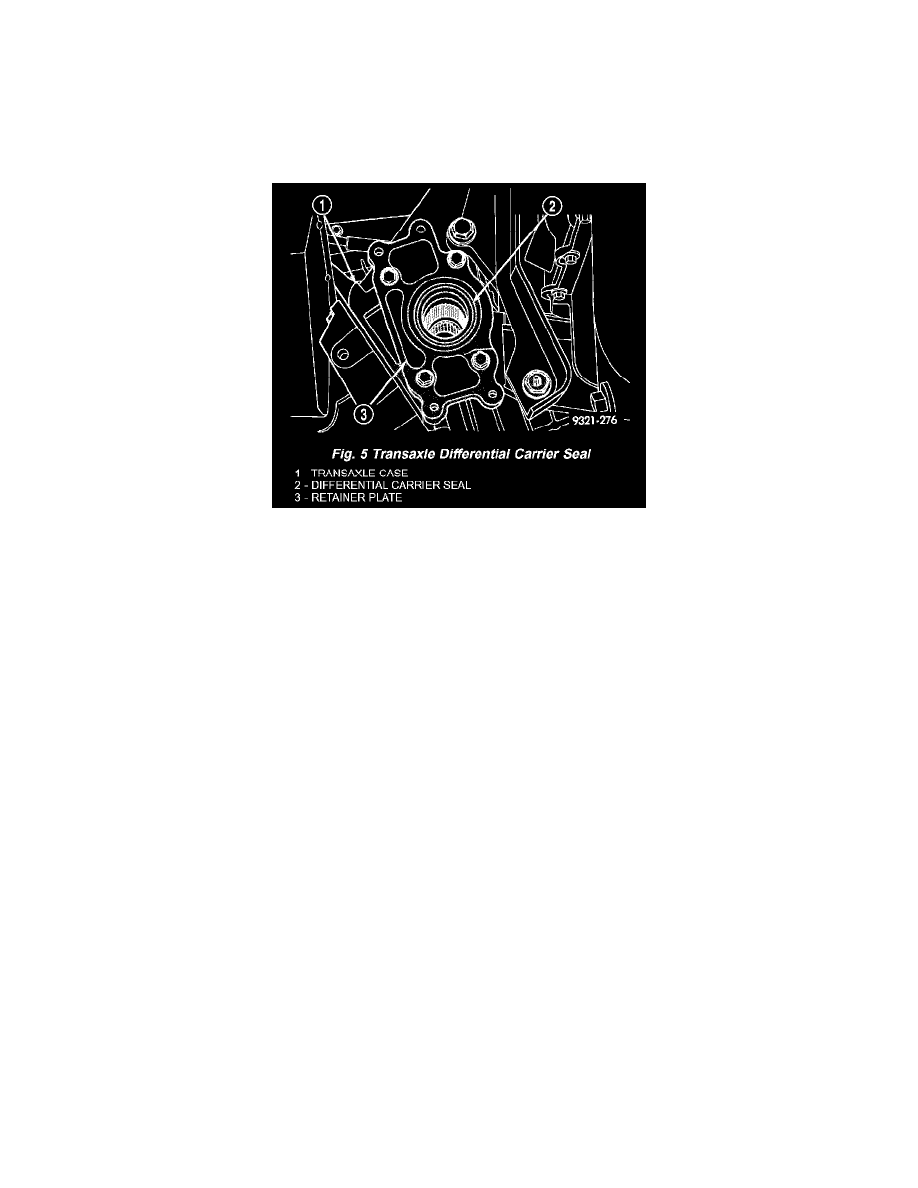

2. Use a pry bar to remove seal from retainer plate (Fig. 5). Be careful not to damage seal journal when removing seal.
INSTALLATION
1. Using a large socket, carefully install new seal.
The spring side of the seal must face the transaxle differential.
2. Install the PTU to the transaxle.
3. Check PTU fluid level.
