Pacifica V6-3.8L VIN L (2005)
Front Door Window Glass Weatherstrip: Service and Repair
Front Inner Belt Molding Weatherstrip
FRONT INNER BELT MOLDING WEATHERSTRIP
REMOVAL
1. Remove the door trim panel. Refer to Front Door Panel.

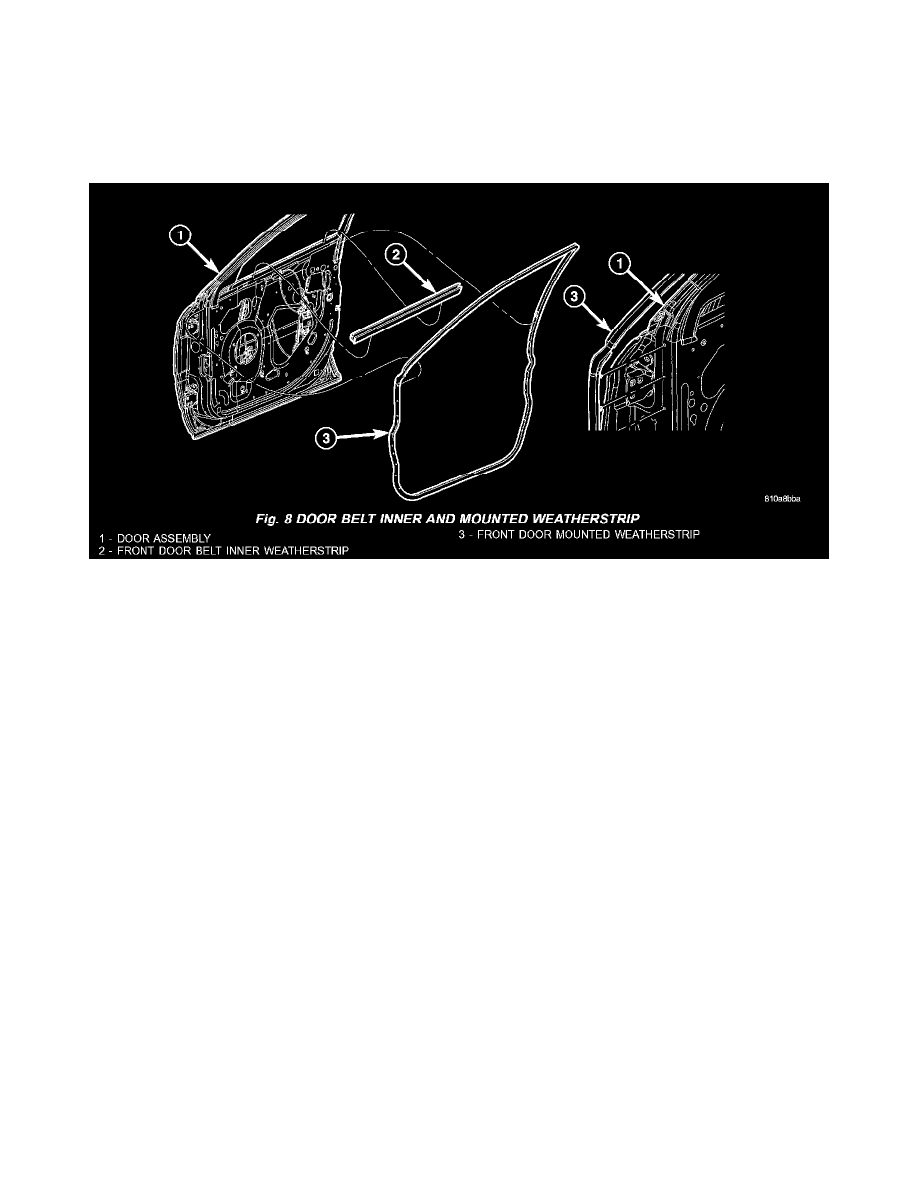

Fig. 8
2. Rotate the inner belt molding outboard while pulling up to disengage the retention tabs (Fig. 8).
3. Remove inner belt molding from door.
INSTALLATION
1. Place inner belt molding into position.
2. Press down on inner belt molding to engage the retention tabs (Fig. 8).
3. Install the door trim panel.
