Pacifica V6-3.8L VIN L (2005)
Windshield Moulding / Trim: Service and Repair
A - PILLAR MOLDING
REMOVAL

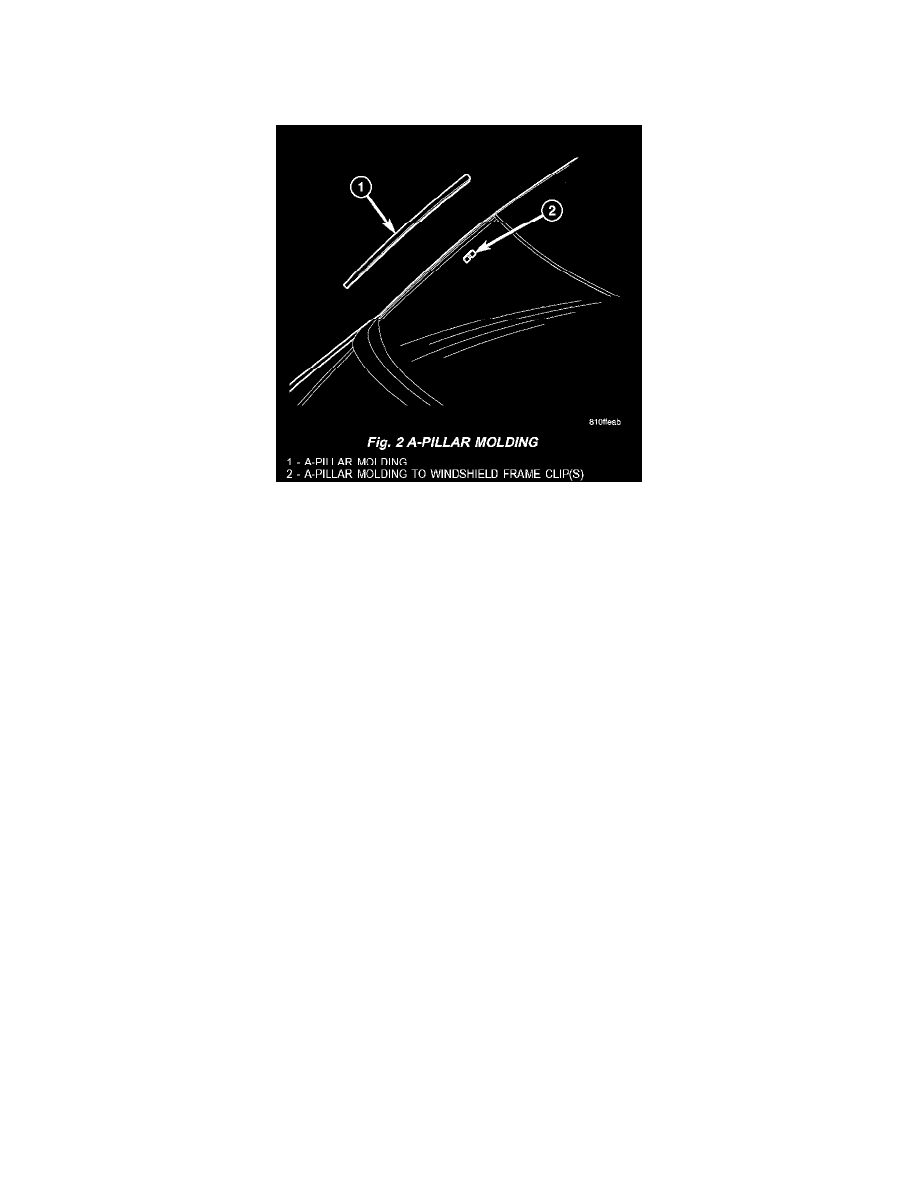

Fig. 2
1. Remove A-pillar trim molding. Pulling trim away from windshield using your hand or a trim tool to disengage the molding from the spring clips.
Starting at the top of molding and work downward disengaging all four spring clips. Use care not to damage A-pillar molding.
INSTALLATION
1. Position A-pillar molding windshield clip into position. Tuck lower end of molding under fender, and align to overlay molding to existing roof
molding at top of windshield. Maintain a 2 mm gap to the roof molding for thermal expansion.
2. Start from the top to the bottom inserting molding into windshield frame clips.
