Pacifica V6-3.8L VIN L (2005)
Wiper Control Module: Service and Repair
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the cowl plenum grille.

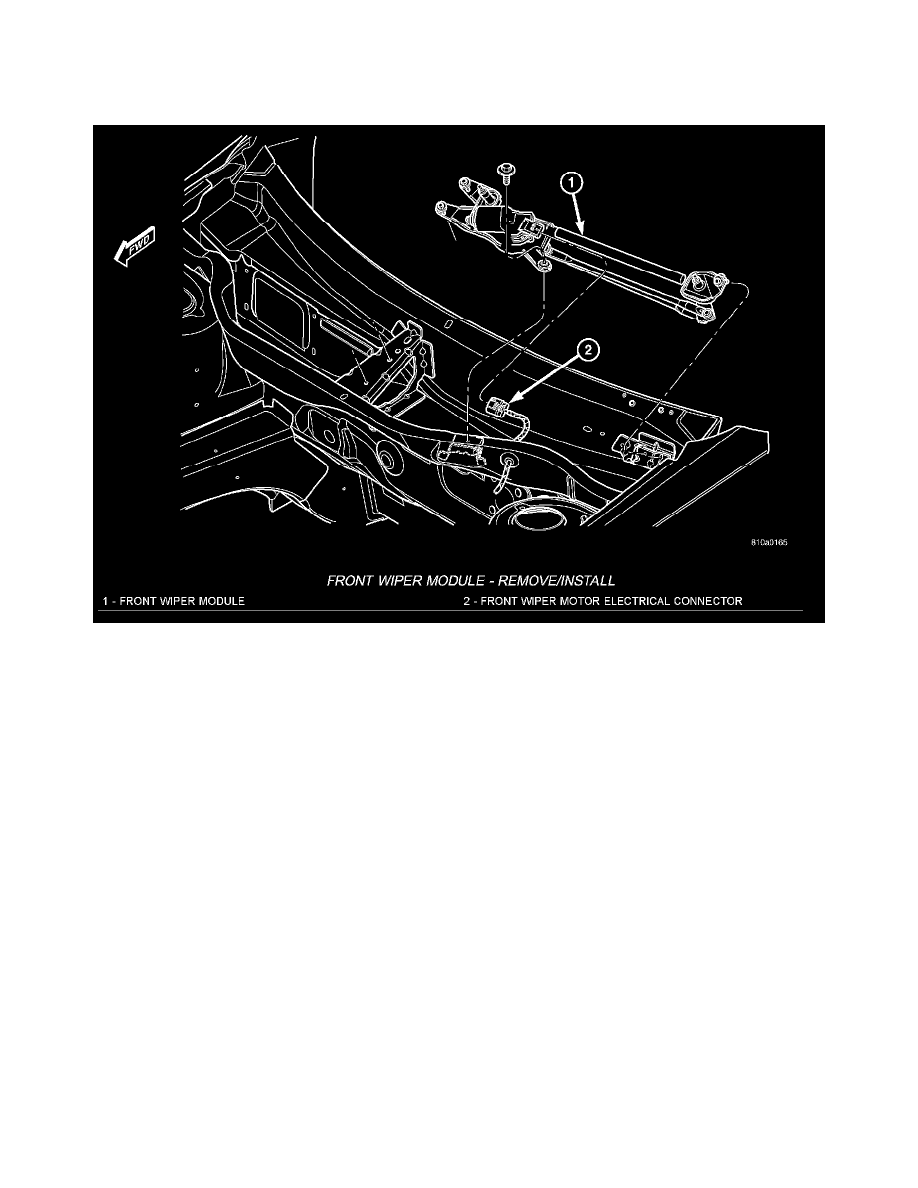

Front Wiper Module -remove
3. Disconnect the wiper motor electrical connector.
4. Remove the four retaining bolts to the wiper module.
5. Remove wiper module from vehicle.
INSTALLATION
1. Place wiper module into position in vehicle.
2. Install the four retaining bolts to the wiper module.
3. Connect the wiper motor electrical connector.
4. Install the cowl plenum grille.
5. Connect the battery negative cable
6. Verify vehicle and system operation.
