Wiper Motor: Service and Repair
Rear Wiper Motor Replacement

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Remove rear wiper arm.
3. Open liftgate, remove liftgate trim panel.

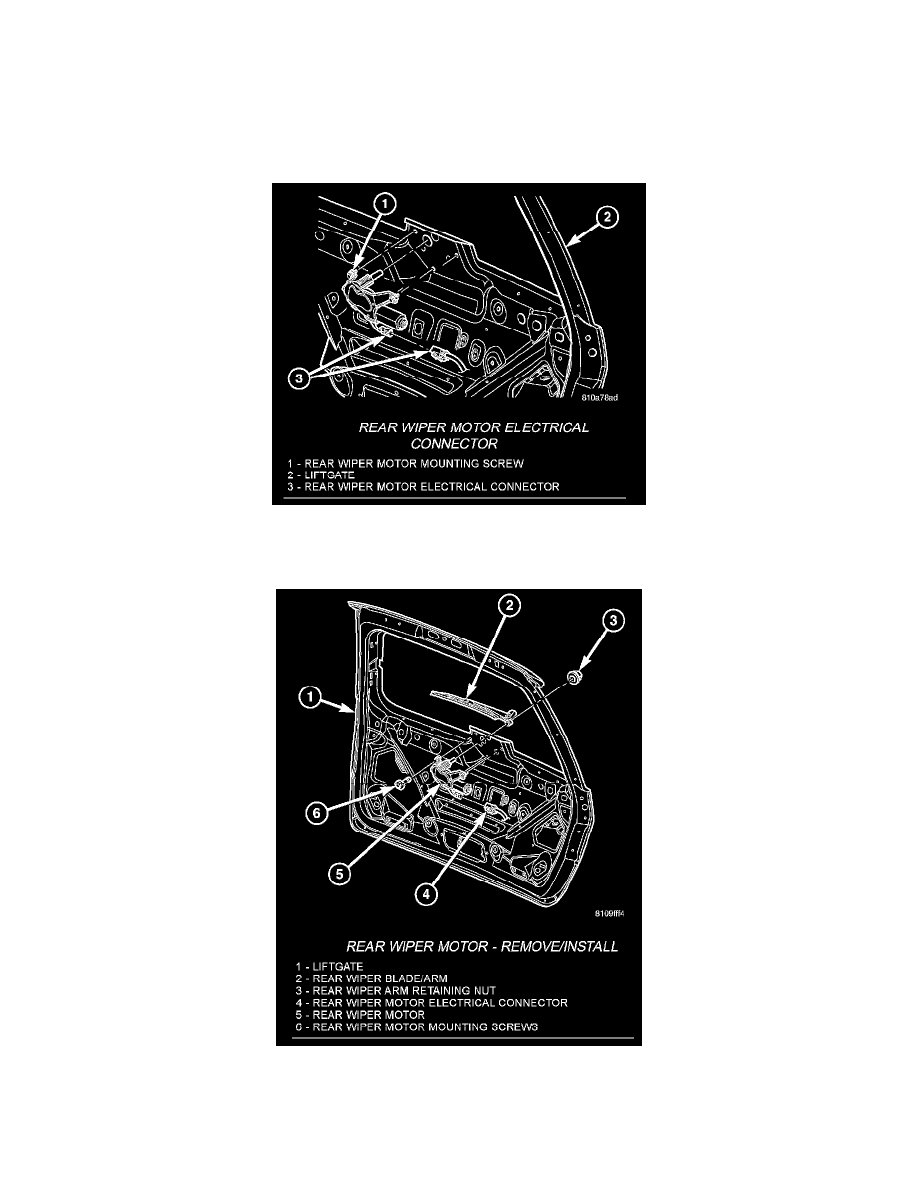

Rear Wiper Motor Electrical Connector

4. Disconnect the rear wiper motor electrical connector.

Rear Wiper Motor - Remove/Install

5. Remove the three rear wiper motor mounting screws.
6. Remove rear wiper motor from lift gate/vehicle.
