Drive Belt: Description and Operation
GAS ENGINES

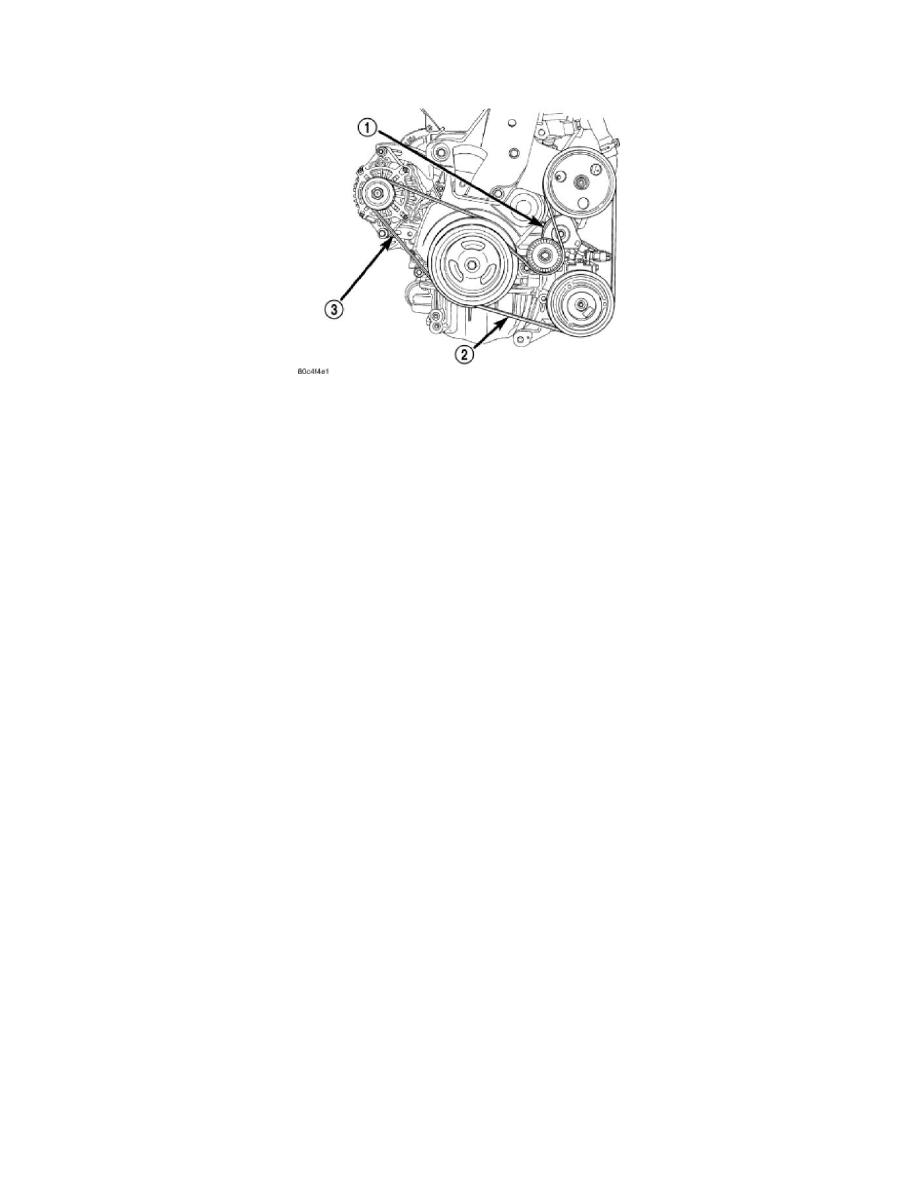

The accessory drive consist of two Poly-V type drive belts. One belt drives the generator (3), the other drives the power steering pump and air
conditioning compressor (if equipped) (2). The power steering/air conditioning belt is tensioned by an automatically controlled belt tensioner (1). The
generator belt is manually tensioned using an adjusting bolt and a locking nut.
