PT Cruiser L4-2.4L Turbo VIN 8 (2005)
Convertible Top Hydraulic Cylinder: Service and Repair
REMOVAL
1. Start with the folding top in the raised and latched position.
2. Disconnect the battery negative cable.
3. Remove the well liner/carpet from the folding top well.
4. Remove the rear quarter trim panels.
NOTE: Place a reference mark along the outer edge of the shelf seat brackets to ensure they are installed back to the original position.

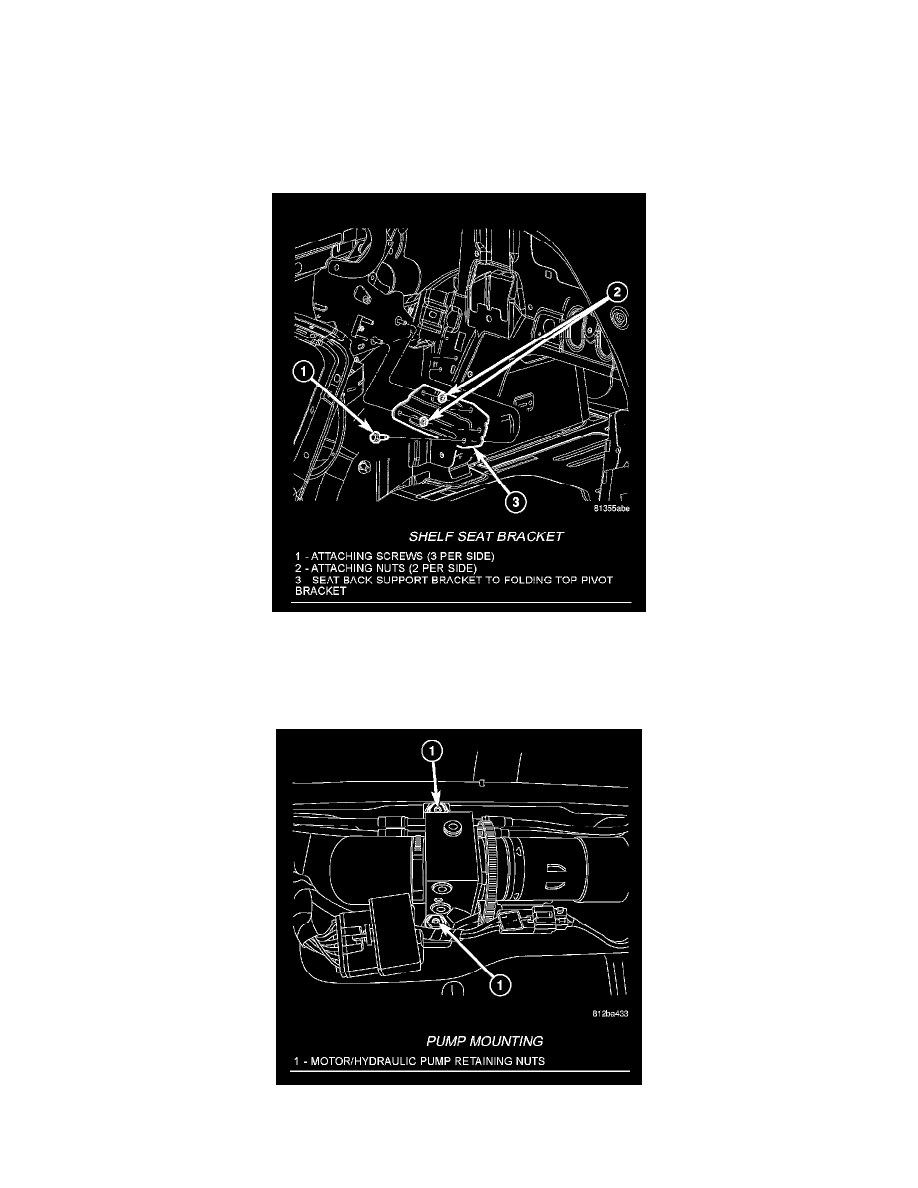

Shelf Seat Bracket
5. Remove the seat back support brackets.
6. Remove the motor/hydraulic pump foam cover.
7. Remove the six cable tie straps (three per side) and clip the three on the left side to separate the wire harness.
Pump Mounting
