Chrysler Workshop Service and Repair Manuals > PT Cruiser L4-2.4L Turbo VIN 8 (2005) > Lighting and Horns | Sensors and Switches - Lighting and Horns | Combination Switch | Component Information | Locations

Combination Switch|Locations|Page 8832 > < Component Locations|Page 8828

Page 1

background image

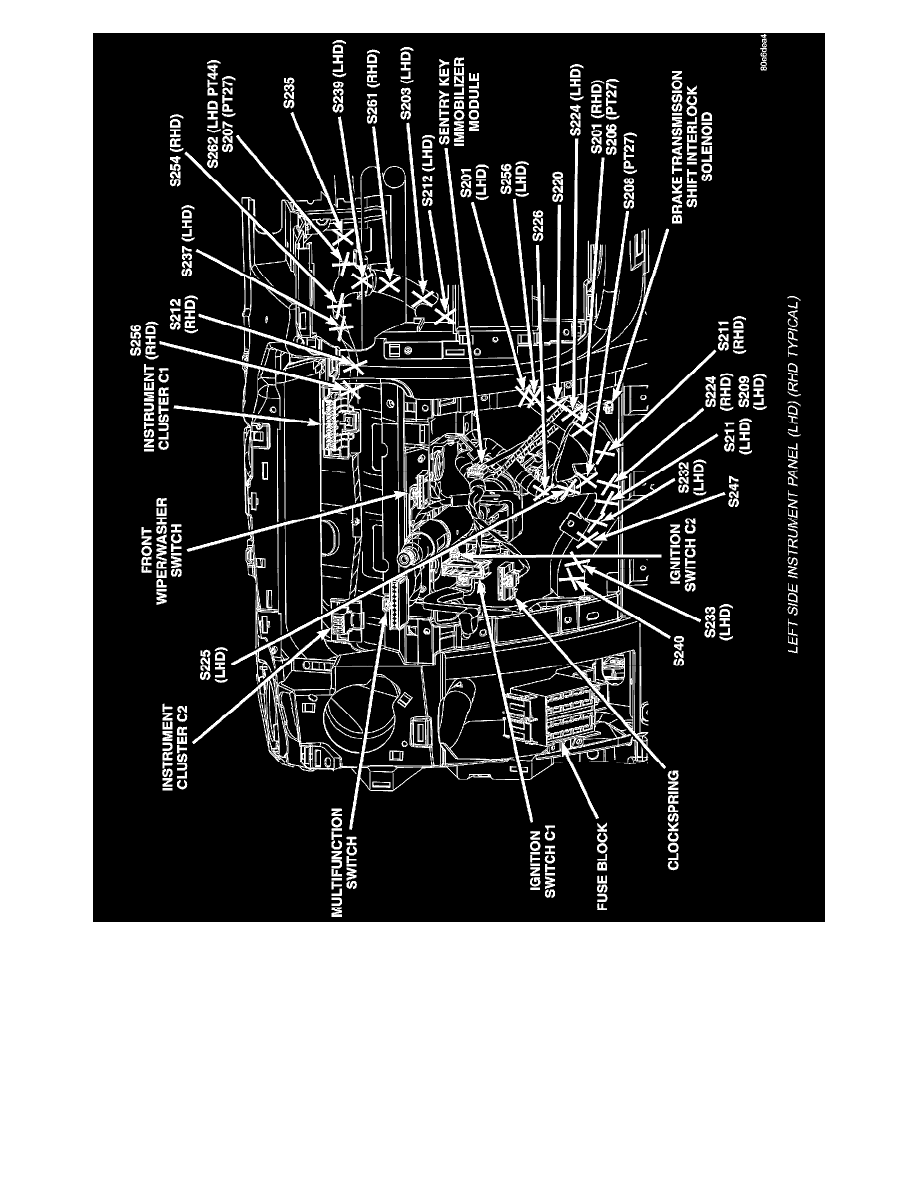

Left Side Instrument Panel (LHD) (RHD Typical)

Lighting and Horns
Sensors and Switches - Lighting and Horns
Combination Switch
Component Information
Locations
