PT Cruiser L4-2.4L Turbo VIN 8 (2005)
Transmission Temperature Sensor/Switch: Service and Repair
41TE
TRANSMISSION RANGE SENSOR
REMOVAL
The valve body assembly must be removed to gain access to and replace the transmission range sensor.
1. Disconnect the battery cables.

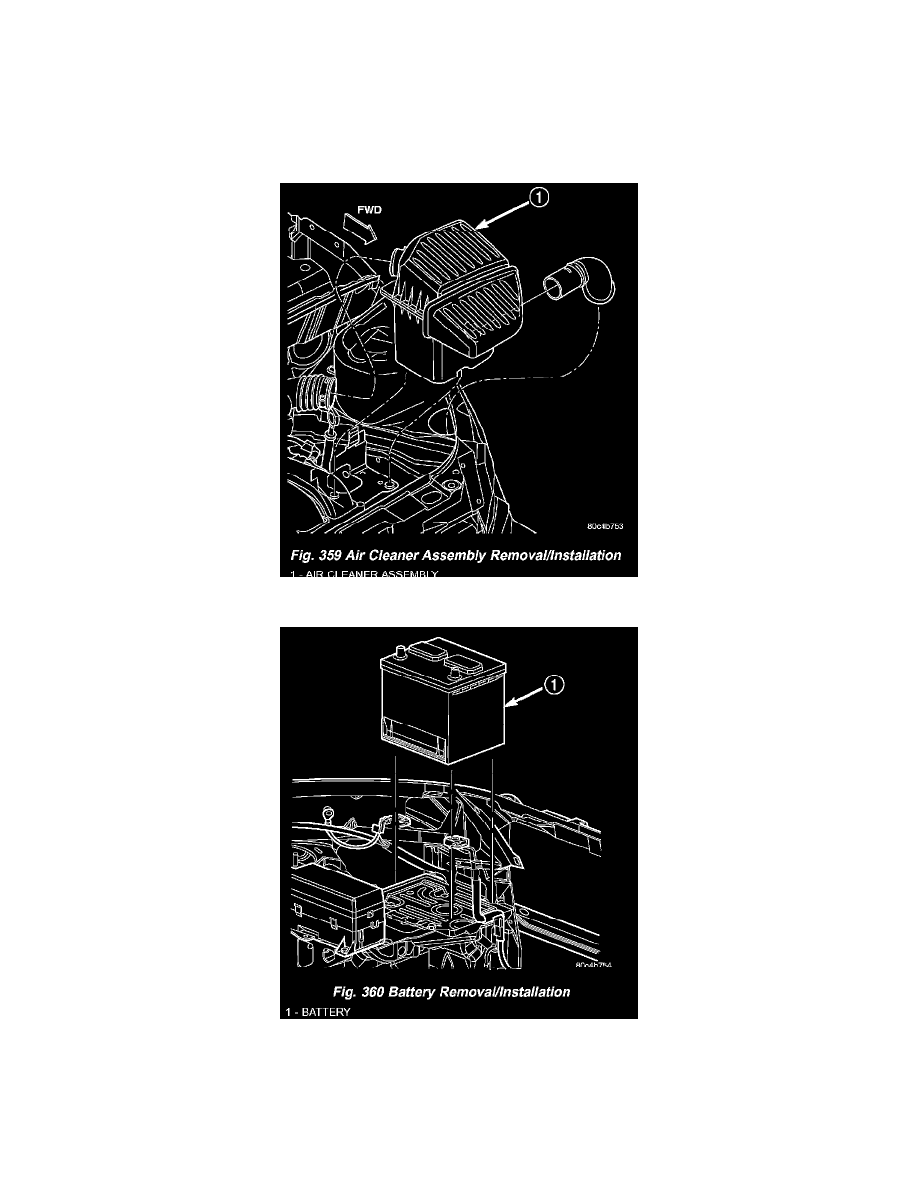

2. Remove air cleaner assembly (Fig. 359).
3. Remove the battery hold down clamp and remove the battery (Fig. 360).
