PT Cruiser L4-2.4L Turbo VIN 8 (2005)
Clutch Master Cylinder: Service and Repair
Left Hand Drive
REMOVAL
NOTE: Vehicles equipped with a 1.6/2.0/2.4L (Non-Turbo) engine have one-piece master/slave cylinder assemblies. If the master cylinder requires
replacement, the master AND slave cylinders must be replaced with a two-piece "quick-connect" system. If the slave cylinder requires
replacement, the slave cylinder is serviced separately.
NOTE: Replacement master cylinder assemblies come pre-filled with fluid. No fluid service or system bleeding should be required, unless the
hydraulic system has lost an excessive amount of fluid and has ingested air into the master or slave cylinder assembly.

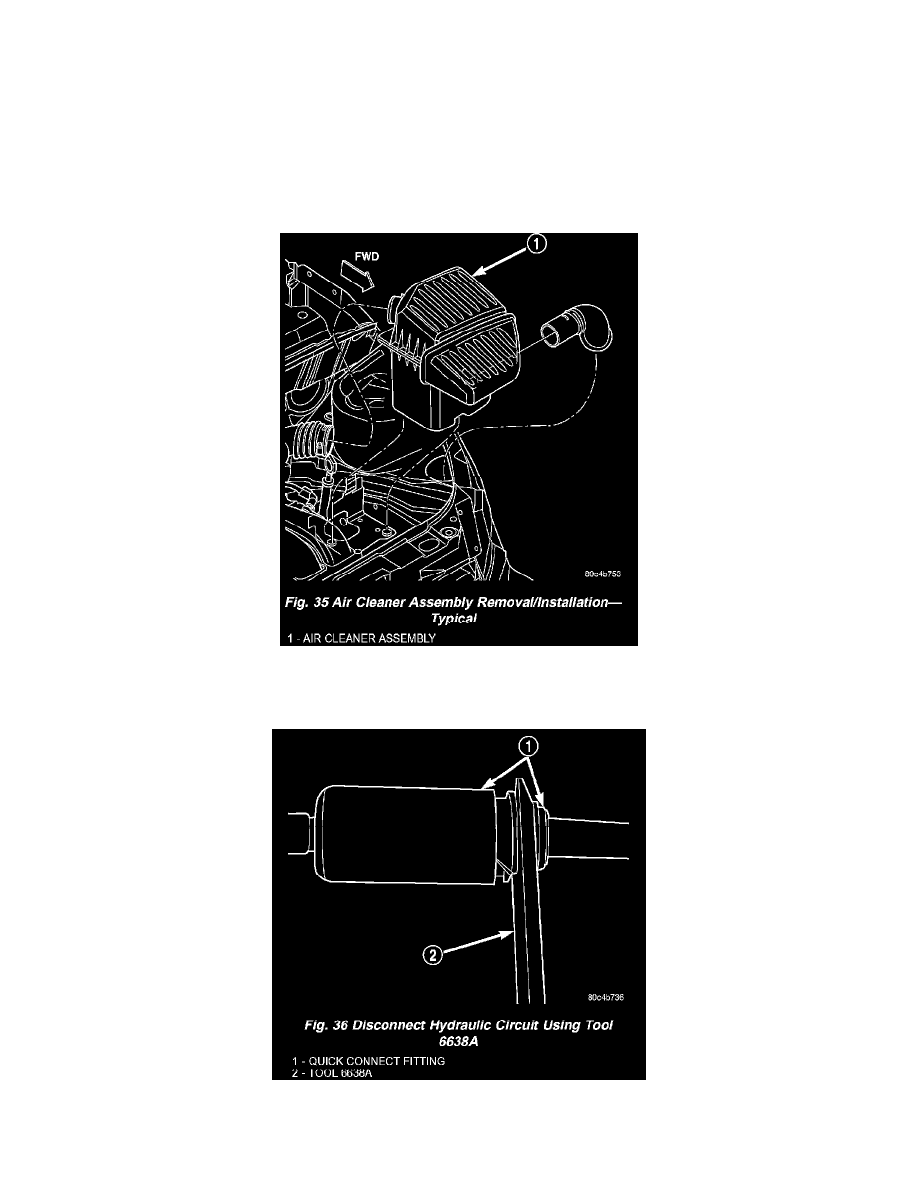

1. Remove air cleaner assembly (Fig. 35).
2. Disconnect battery negative cable.
3. Raise vehicle on hoist.
