PT Cruiser L4-2.4L VIN B (2001)
Alternator: Service and Repair
REMOVAL
1. Remove the air cleaner lid, disconnect the inlet air sensor and makeup air hose.
2. Disconnect the negative battery cable.

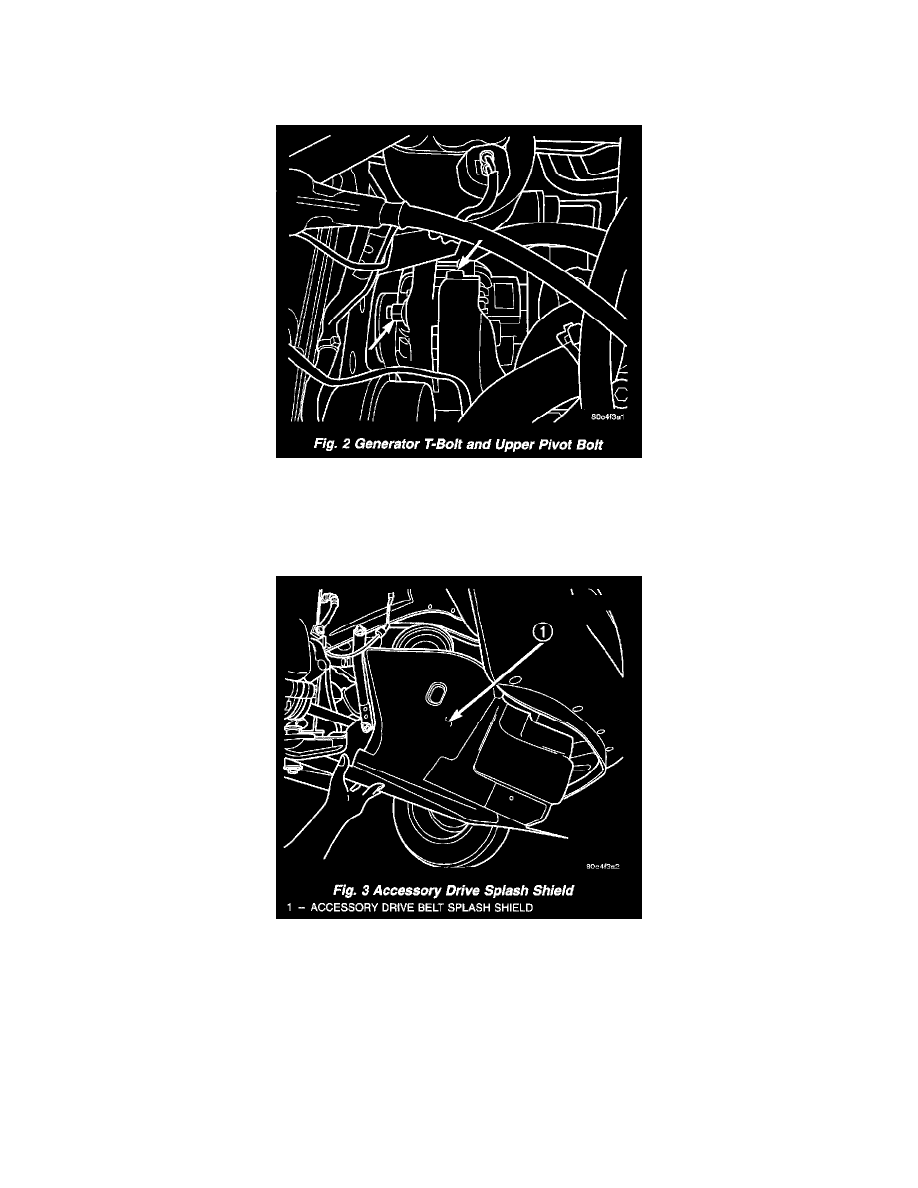

Fig.2 Generator T-Bolt And Upper Pivot Bolt
3. Loosen the upper generator adjustment lock nut (Fig. 2).
4. Raise vehicle on hoist.
5. Remove the right front wheel.
Fig.3 Accessory Drive Splash Shield
6. Remove the accessory drive splash shield (Fig.3).
