Sebring Convertible V6-2.5L VIN H (1997)
Parking Brake Lever: Service and Repair
Parking Brake Lever Removal
PARK BRAKE LEVER OUTPUT CABLE
On this vehicle, the park brake lever output cable is not replaceable as a separate component of the park brake lever. Never attempt to repair the
park brake output cable in any manner.
PROCEDURE

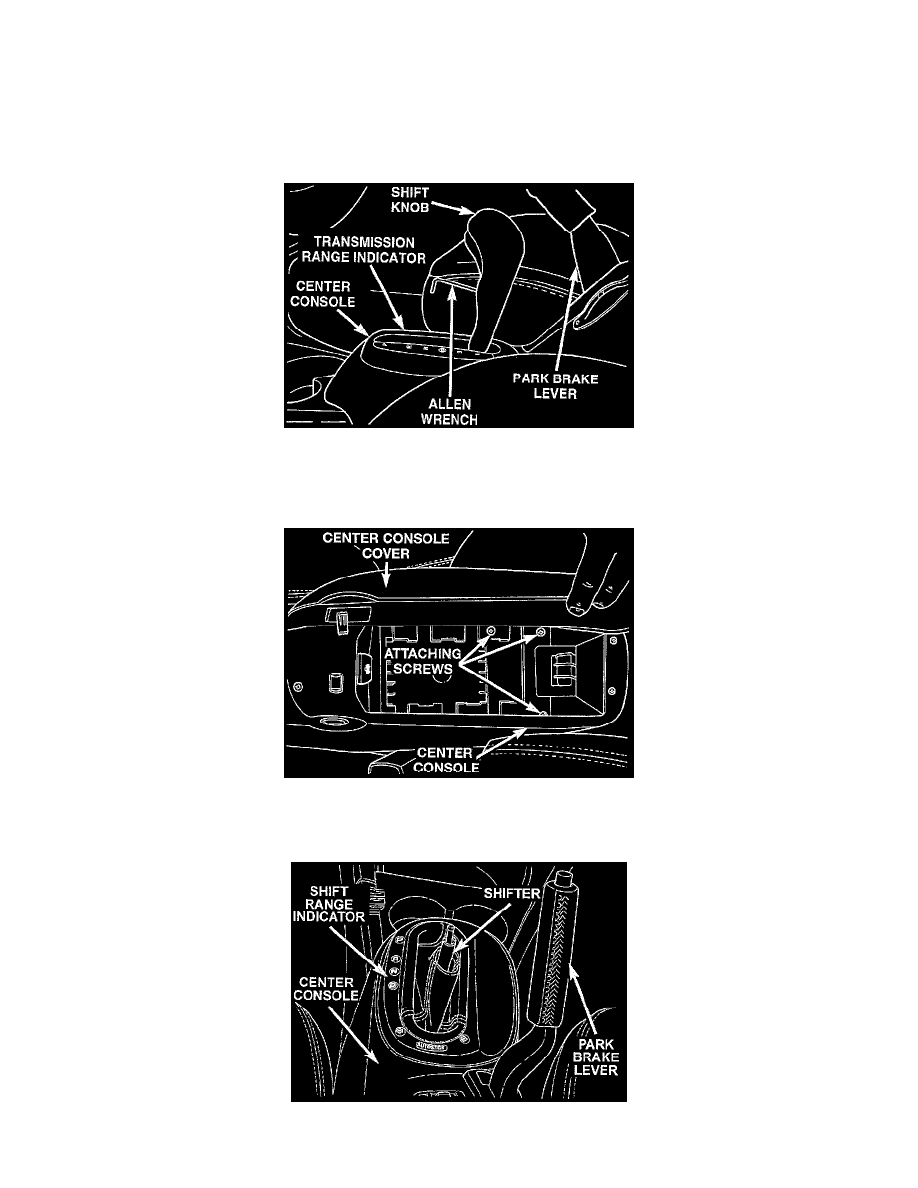

Shift Knob Retaining Screw
1. Remove the shift knob from the shifter. The shift knob is attached to the shifter using a set screw. Access to the set screw is from the front of the
shift knob and is removed using a 2 mm Allen wrench.
Center Console Rear Attaching Screws
2. Remove the 3 screws attaching the rear of the center console to the console bracket.
Shift Range Indicator
