Audible Warning Device: Diagram Information and Instructions

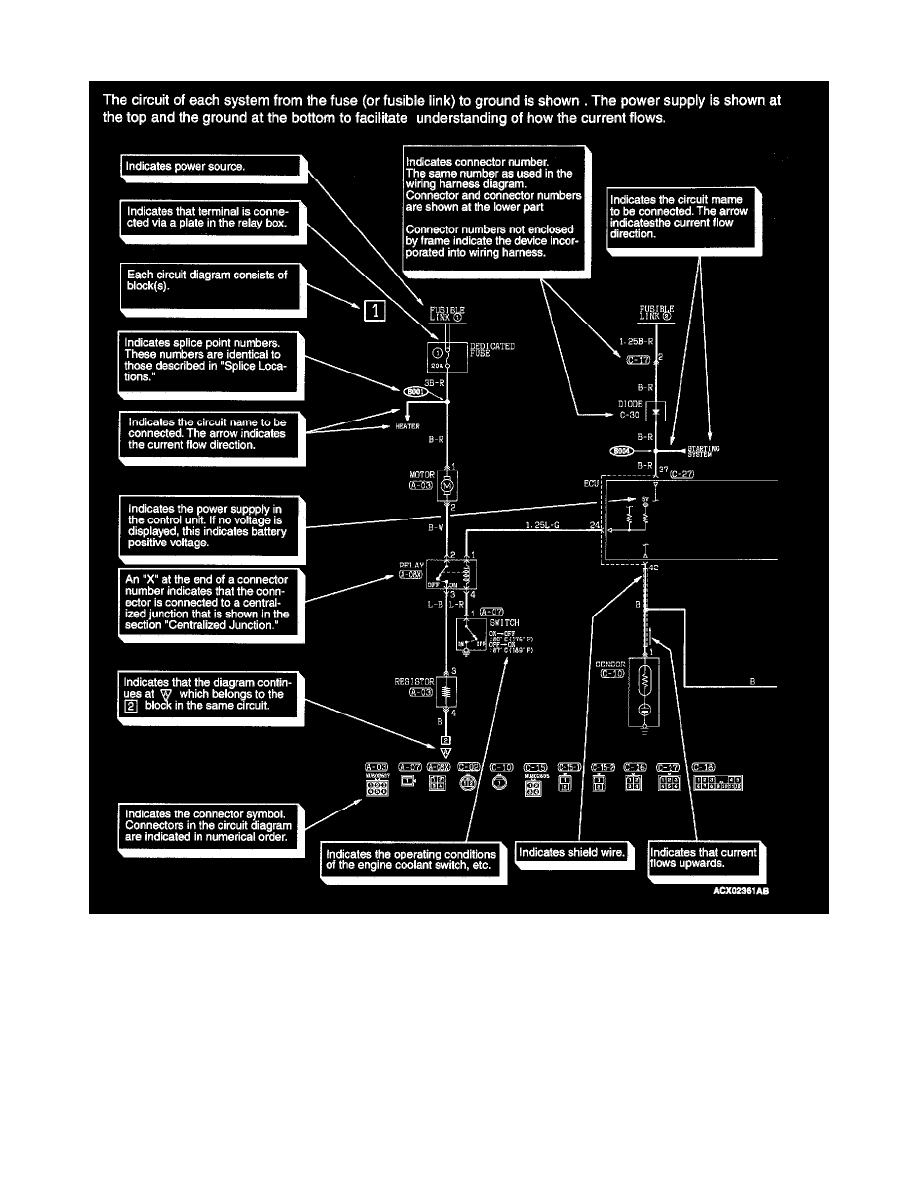

How To Read Circuit Diagrams Part 1

Instrument Panel, Gauges and Warning Indicators
Audible Warning Device
Component Information
Diagrams
Diagram Information and Instructions
