Sebring Coupe V6-3.0L VIN H (2005)
CAUTION: Never disassemble the rocker arm and shaft assembly.
2. Loosen the rocker arm and shaft assembly mounting bolts, then remove the rocker arm and shaft assembly with the bolts still attached.
<<B>> CAMSHAFT SPROCKET REMOVAL

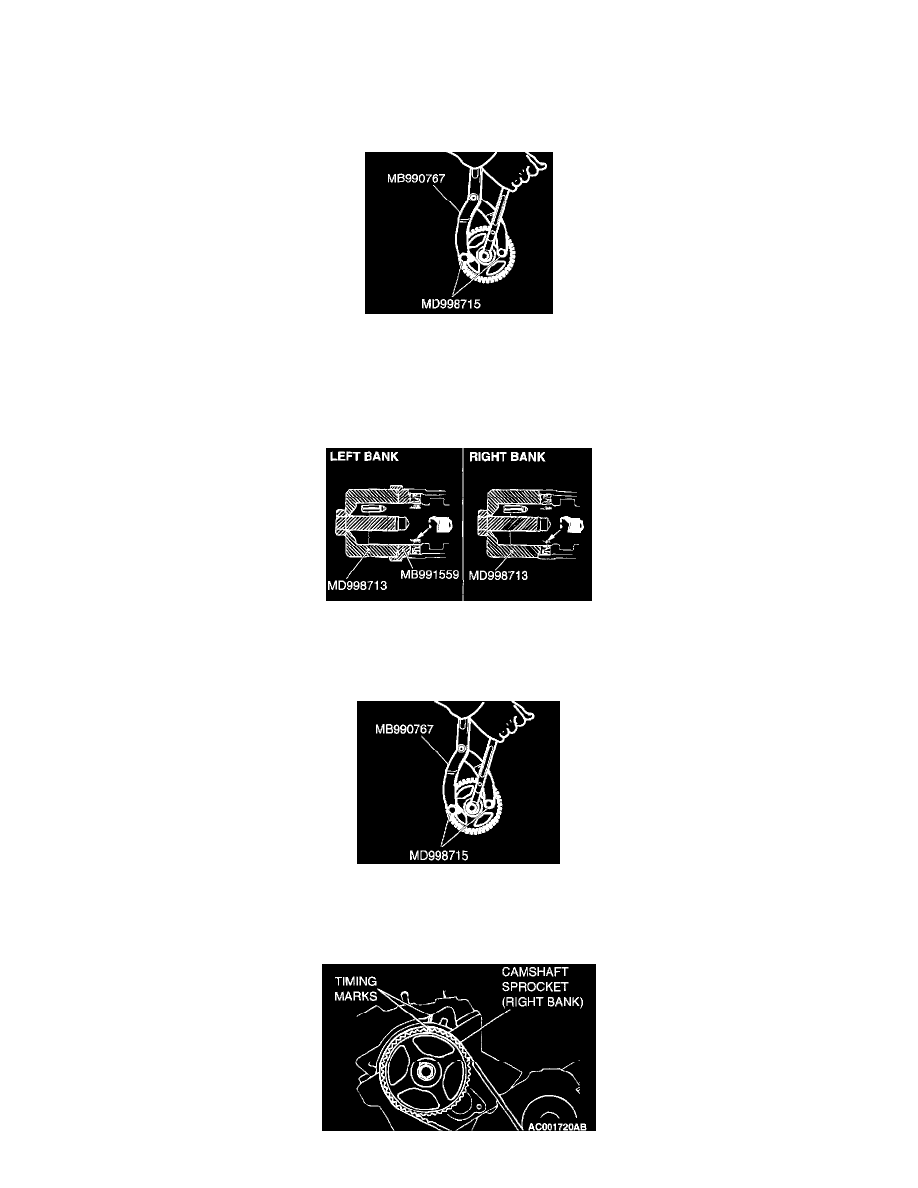

1. Use special tools MB990767 and MD998715 to loosen the camshaft sprocket mounting bolt.
2. Remove the camshaft sprocket.
INSTALLATION SERVICE POINTS
>>A<< CAMSHAFT OIL SEAL INSTALLATION
1. Apply engine oil to the camshaft oil seal lip.
2. Use special tools MB991559 and MD998713 to press-fit the camshaft oil seal.
>>B<< CAMSHAFT SPROCKET INSTALLATION
1. Install the camshaft sprocket.
2. Use special tools MB990767 and MD998715 to tighten the camshaft sprocket mounting bolt to the specified torque.
Tightening torque: 88 ± 10 Nm (65 ± 7 ft. lbs.)
>>C<< DISTRIBUTOR INSTALLATION
