Sebring Coupe V6-3.0L VIN H (2005)

Page 1
background image

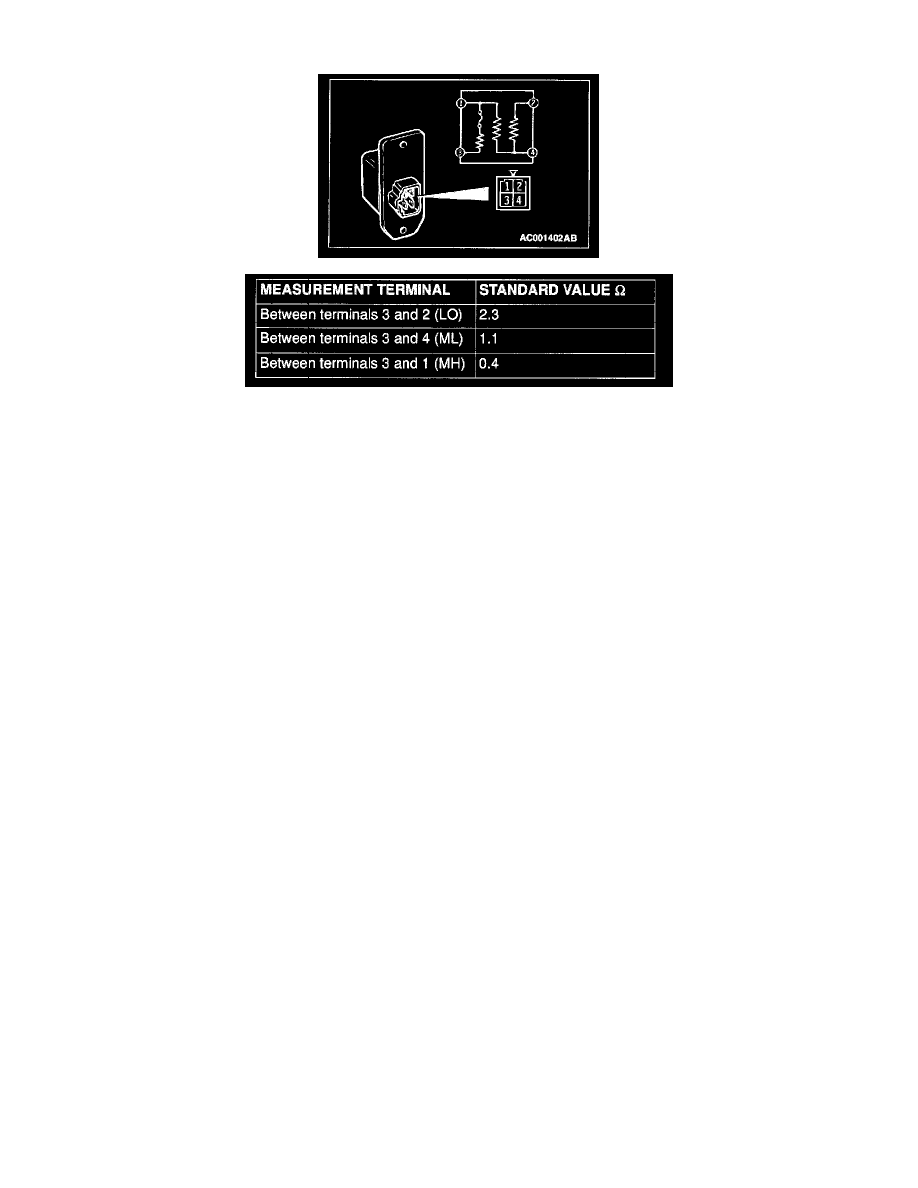

Blower Motor Resistor: Testing and Inspection

Standard Value

RESISTOR CHECK

Use an ohmmeter to measure the resistance between the terminals. Check that the measured value is at the standard value.
