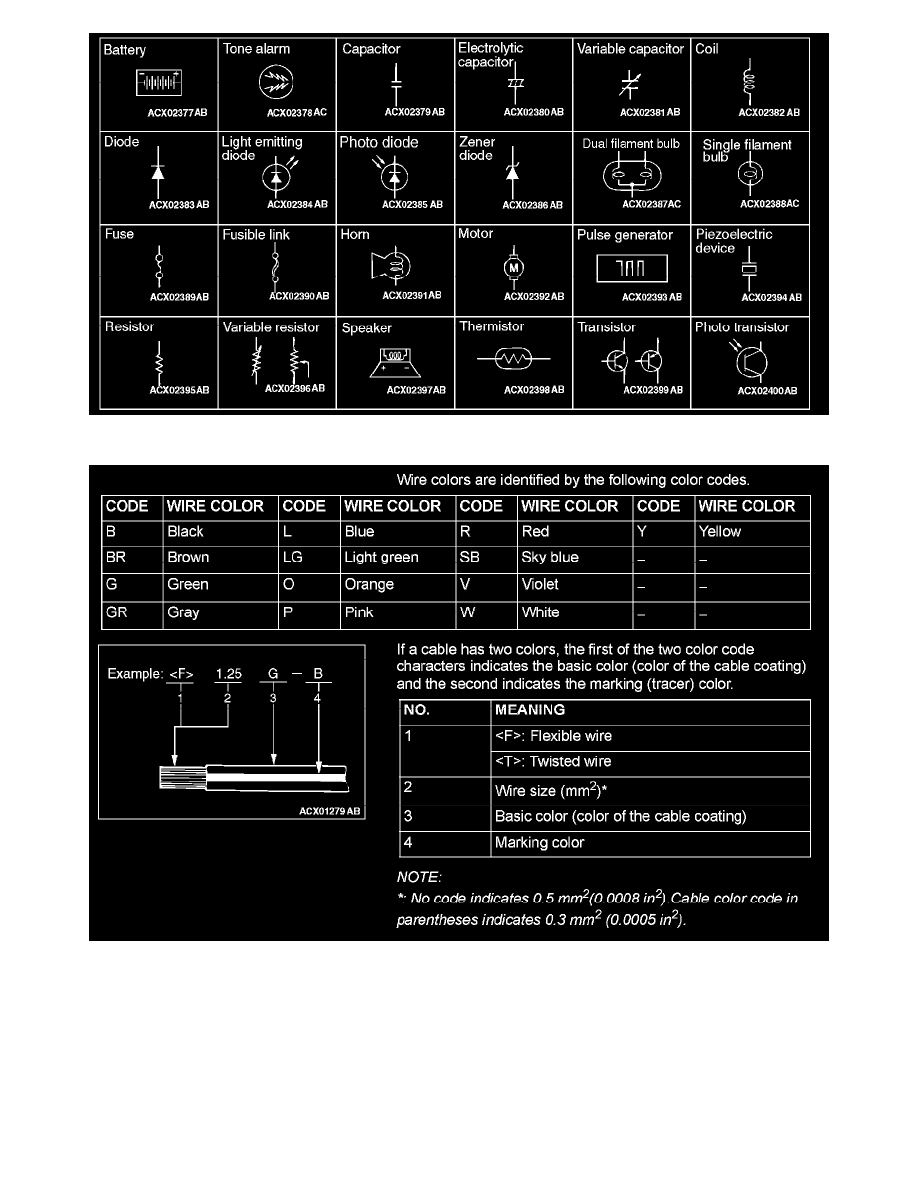

Symbols (Except Connector And Grounding)

Wire Color Codes

Instrument Panel, Gauges and Warning Indicators
Fuel Gauge Sender / Diagrams / Diagram Information and Instructions
