Sebring Coupe V6-3.0L VIN H (2005)
Fuel Gauge Sender: Testing and Inspection
Fuel Gauge Unit Float Height

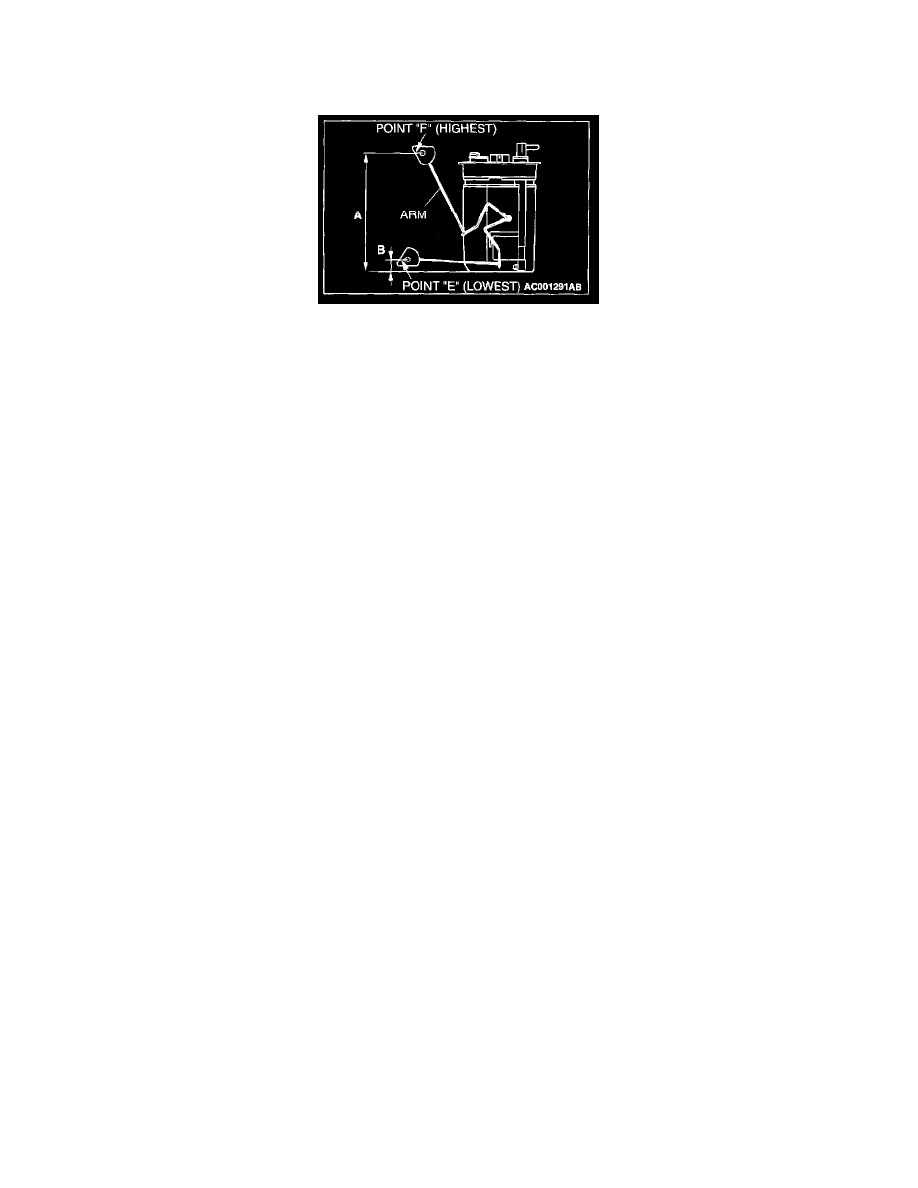

FUEL GAUGE UNIT FLOAT HEIGHT
1. Move the float and measure height A at point
Standard value:
-
A: 180.3 mm (7.10 inches)
-
B: 18.8 mm (0.14 inch)
2. Adjust the float arm to the standard value, then go to Thermistor check.
