Sebring Coupe V6-3.0L VIN H (2005)
Malfunction Indicator Lamp: Description and Operation

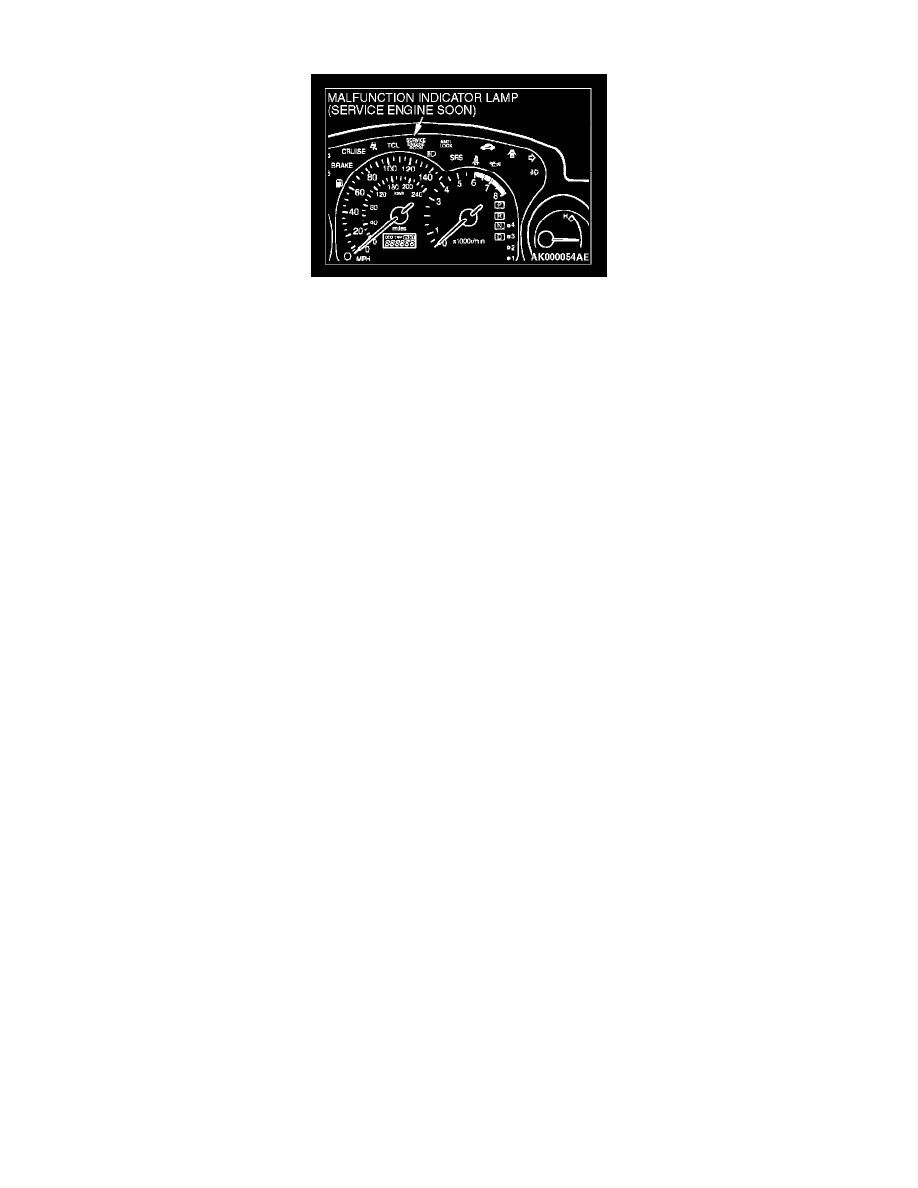

MALFUNCTION INDICATOR LAMP (SERVICE ENGINE SOON OR CHECK ENGINE LAMP)
Among the on-board diagnostic items, a Malfunction Indicator Lamp (SERVICE ENGINE SOON) illuminates to notify the driver of an emission
control malfunction. However, when an irregular signal returns to normal and the powertrain control module judges that it has returned to normal, the
Malfunction Indicator Lamp (SERVICE ENGINE SOON) is switched off.
Moreover, when the ignition switch is turned off, the lamp is switched off. Even if the ignition switch is turned on again, the lamp does not illuminate
until the malfunction is detected. Immediately after the ignition switch is turned on, the Malfunction Indicator Lamp (SERVICE ENGINE SOON) is lit
for 20 seconds to indicate that the Malfunction Indicator Lamp (SERVICE ENGINE SOON) operates normally.
