Turn Signal Bulb: Service and Repair

REPLACEMENT OF FRONT TURN SIGNAL LIGHT BULB

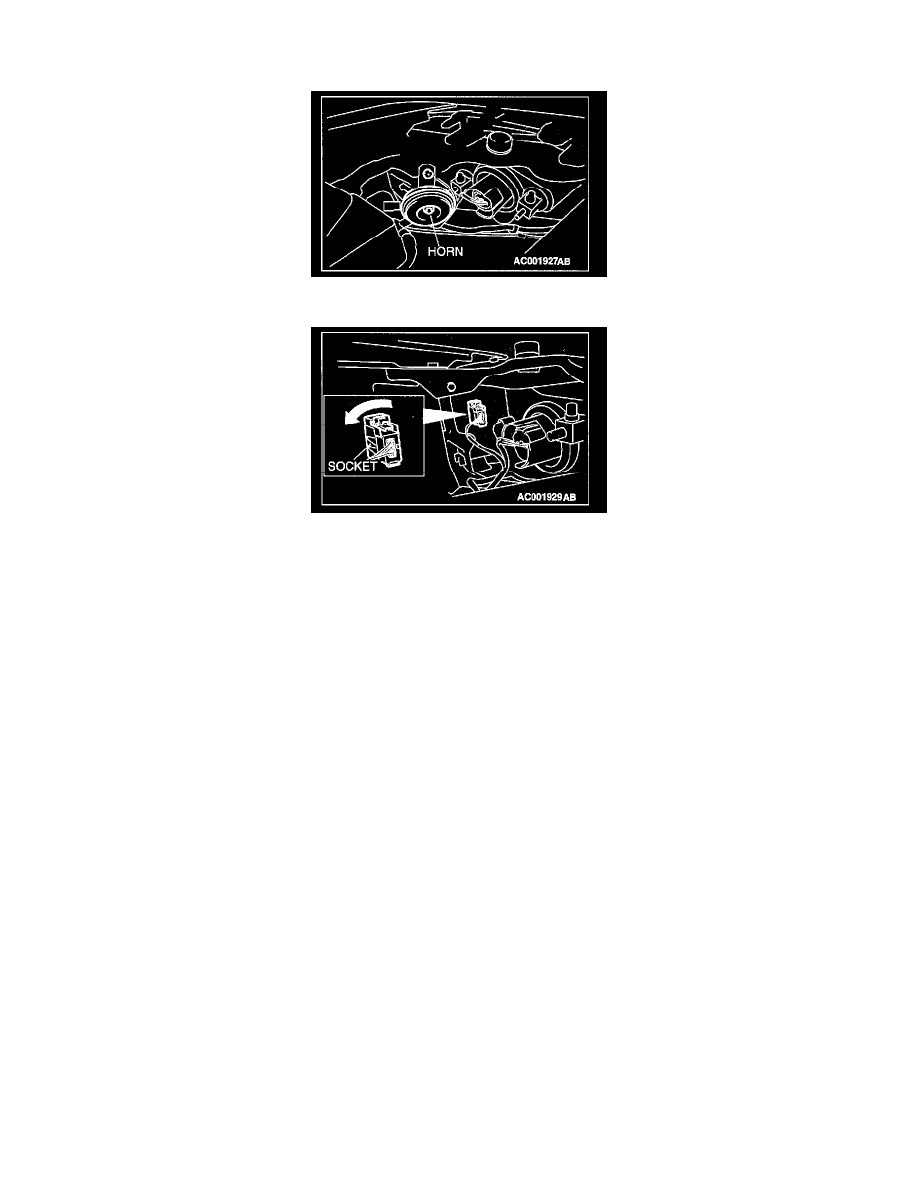

1. Remove the horn (LH side only).

2. Turn the socket counterclockwise and pull it out and remove the front turn signal light bulb.

CAUTION:  Do not touch the surface of the bulb with hands or dirty gloves as the bulb may pop after a short time. If the surface does become
dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.
