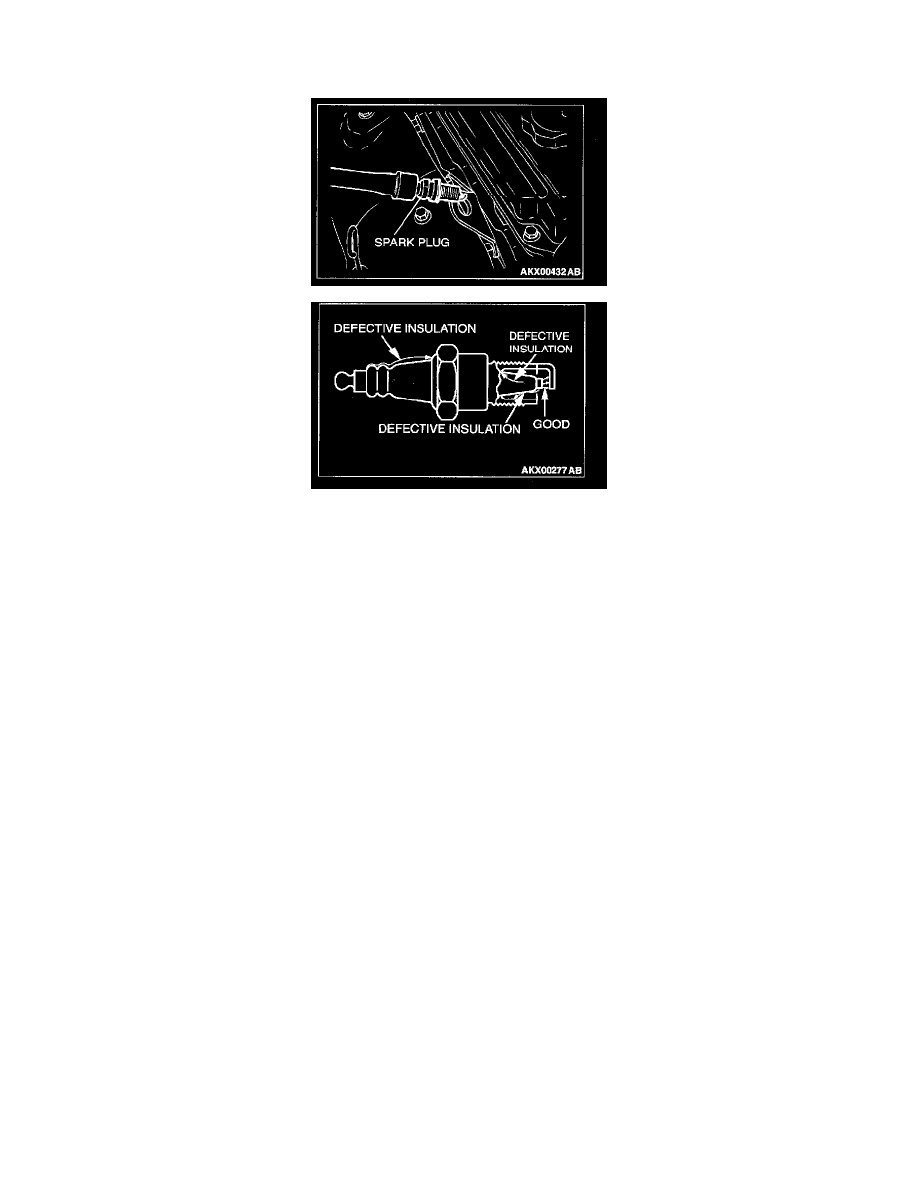

Spark Plug: Testing and Inspection
Spark Plug Test

SPARK PLUG TEST

<3.0L ENGINE>

1. Remove the spark plug and connect to the spark plug cable.

2. Ground the spark plug outer electrode (body), and crank the engine.

Check that there is an electrical discharge between the electrodes at this time.
