Page 1

background image

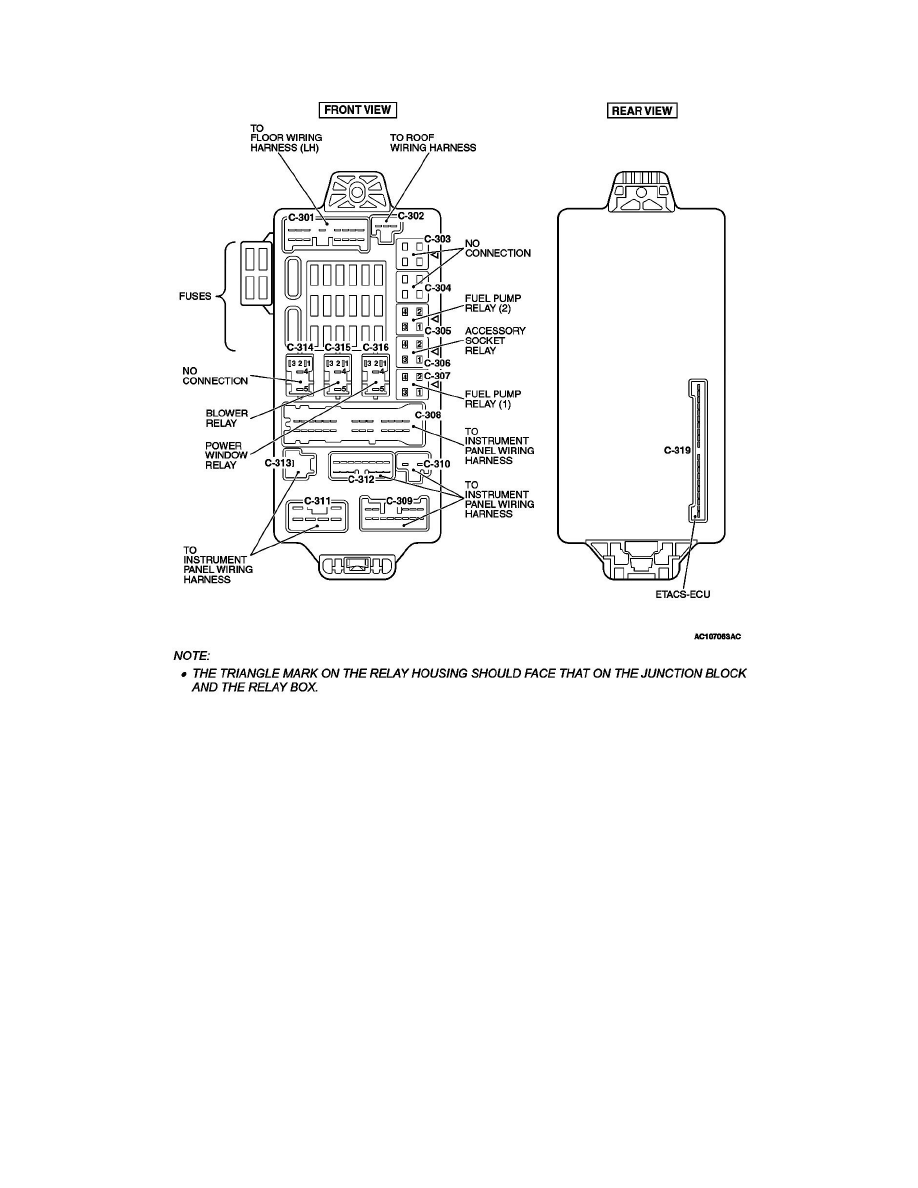

Relay Box: Application and ID
Junction Block

Power and Ground Distribution
Relays and Modules - Power and Ground Distribution / Relay Box / Component Information
Application and ID / Centralized Junction
Page 4972
