Page 1

background image

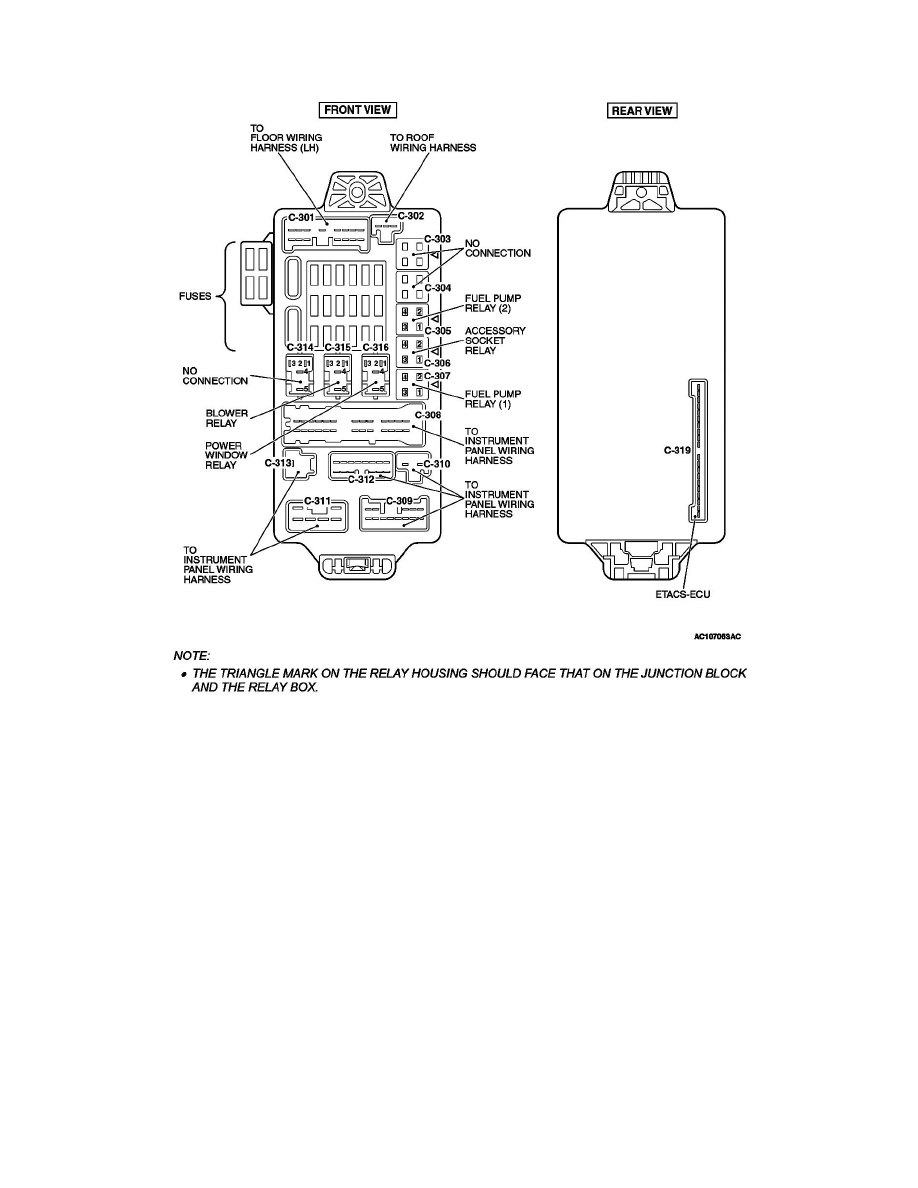

Relay Box: Locations
Junction Block

Power and Ground Distribution
Relays and Modules - Power and Ground Distribution / Relay Box / Centralized Junction
Page 4938
