Sebring Coupe V6-3.0L VIN H (2005)

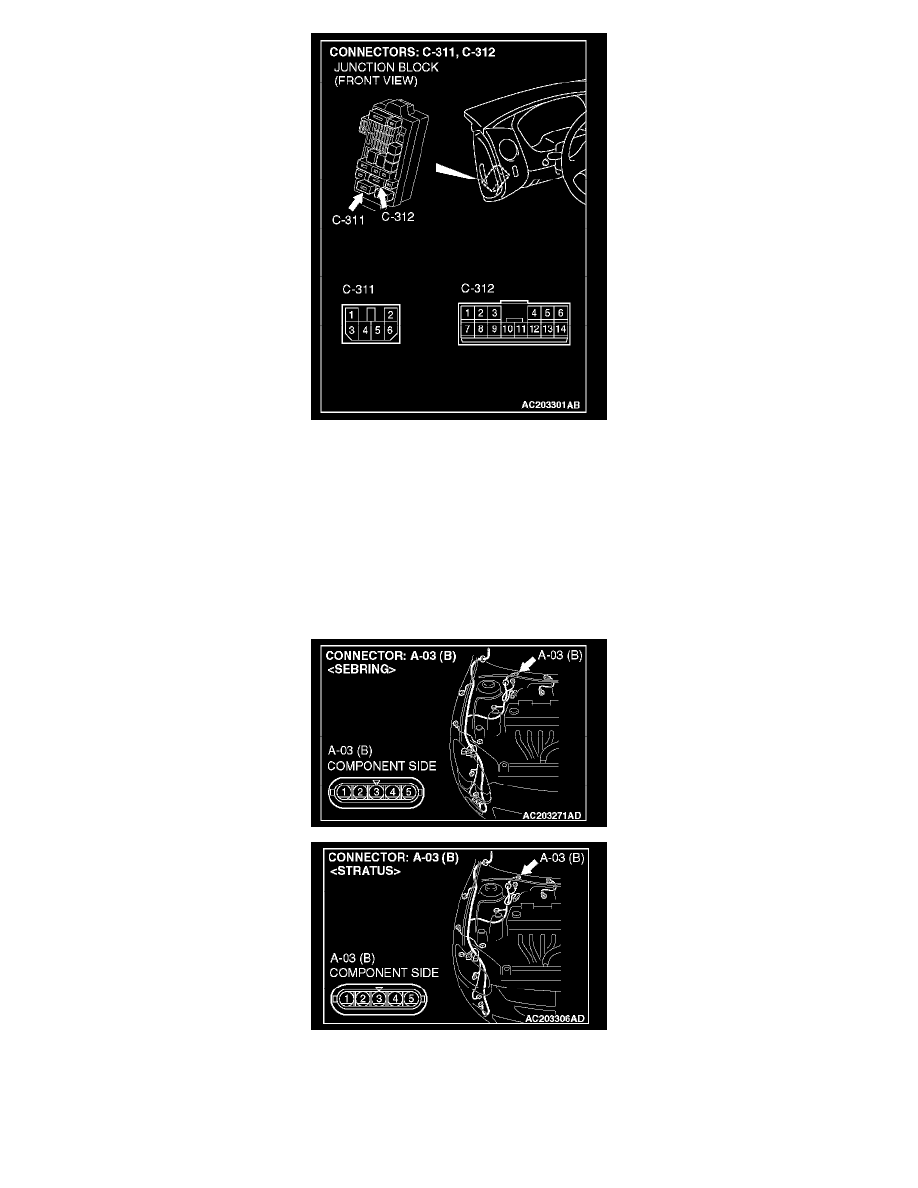

STEP 4. Check the wiring harness between windshield wiper motor connector A-03 and the ignition switch (ACC).
NOTE: Also check intermediate connector C-212, junction block connectors C-311 and C-312 for loose, corroded, or damaged terminals, or terminals
pushed back in the connector. If intermediate connector C-212, junction block connector C-311 or C-312 is damaged, repair or replace the damaged
component(s) as described in Harness Connector Inspection.
Q: Is the wiring harness between windshield wiper motor connector A-03 and the ignition switch (ACC) in good condition?
YES: No action is necessary and testing is complete.
NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the
connector. Repair the wiring harness as necessary. The windshield wiper should now stop at the predetermined park position.
