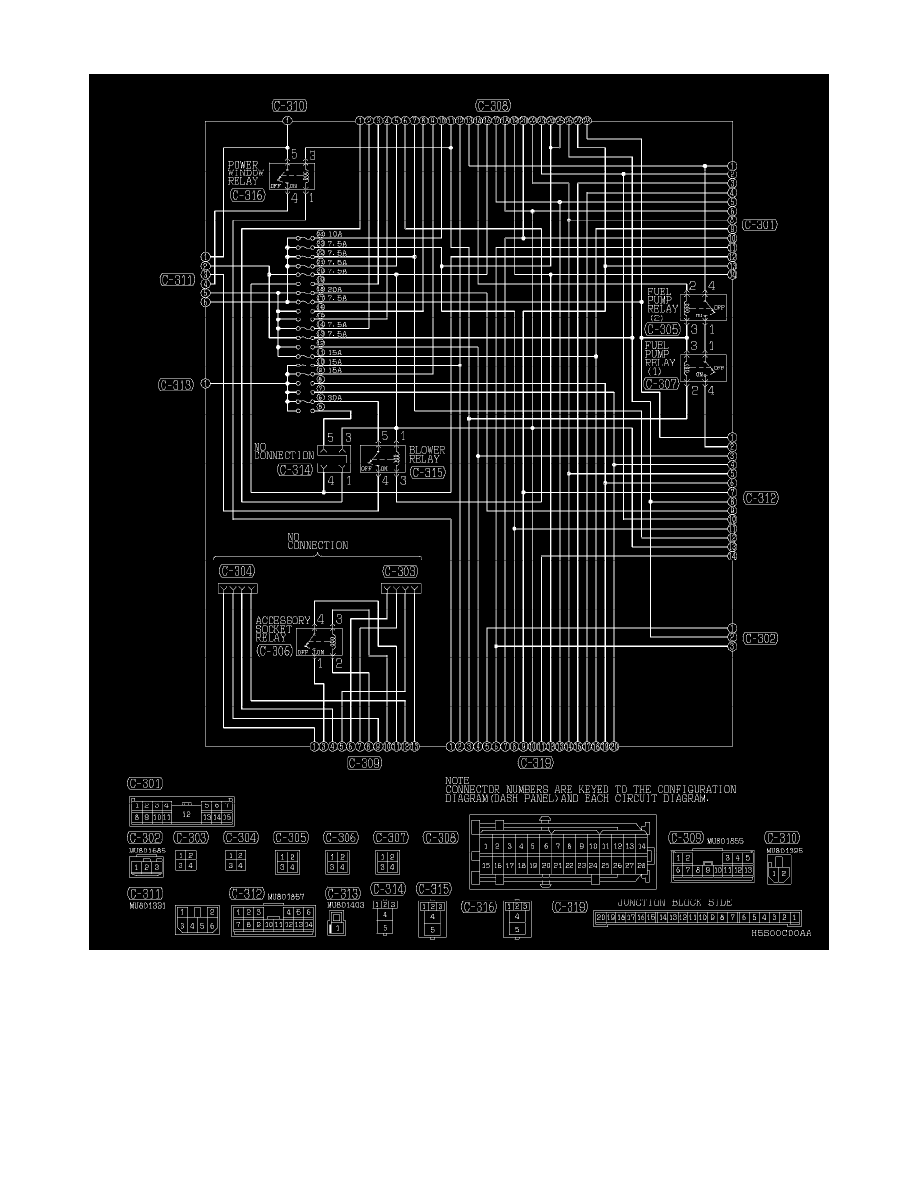

Relay Box: Electrical Diagrams

Junction Block

Relays and Modules
Relays and Modules - Power and Ground Distribution / Relay Box / Component Information
Diagrams / Diagram Information and Instructions
