Sebring Coupe V6-3.0L VIN H (2005)
Battery: Procedures
Battery Cleaning and Inspection
BATTERY CHECK
WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING.

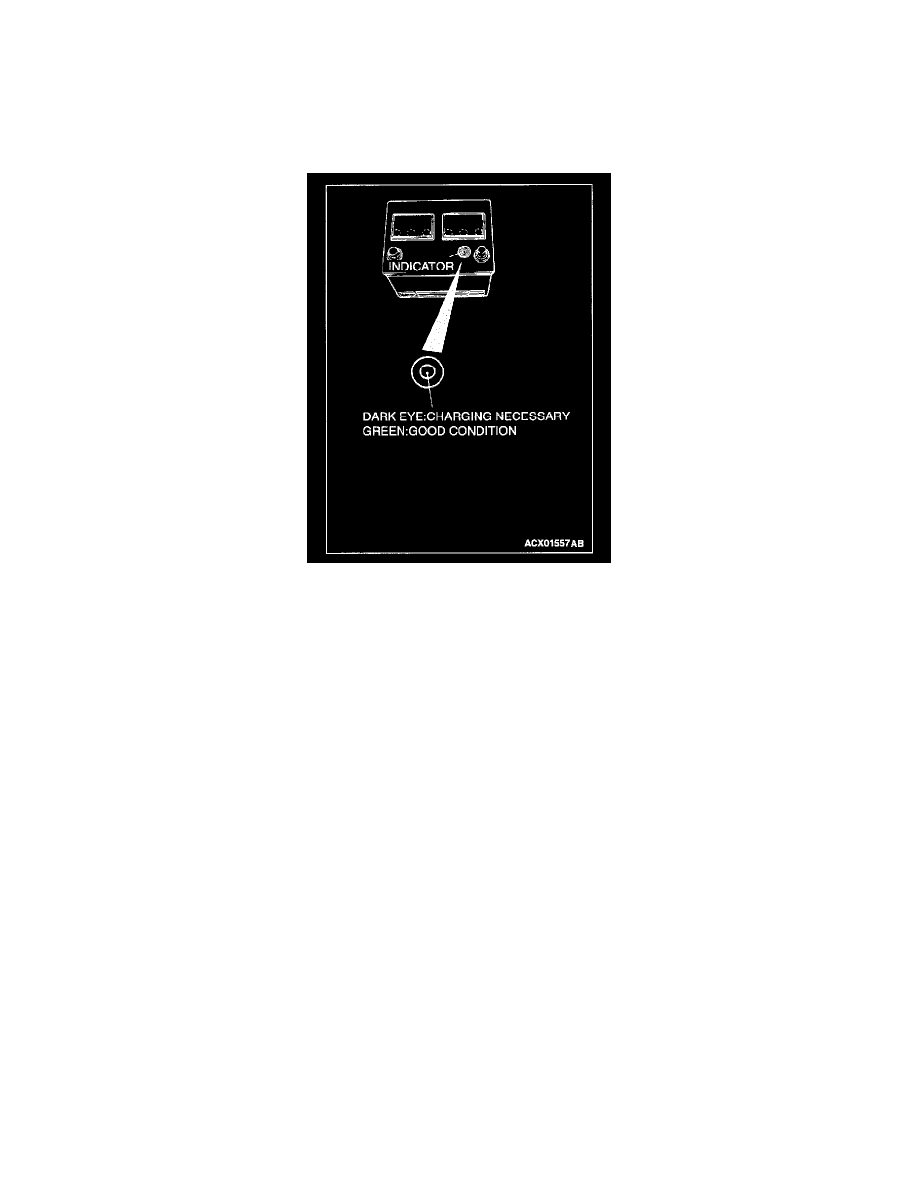

BATTERY VISUAL INSPECTION (1)
The battery contains a visual test indicator which gives a green signal when an adequate charge level exists, and a dark signal when charging is required.
BATTERY VISUAL INSPECTION (2)
Make sure the ignition switch is in LOCK (OFF) position and all battery fed accessories are OFF.
1. Disconnect the negative cable from battery before disconnecting the positive cable.
WARNING: Care should be taken in the event the battery case is cracked or leaking to protect hands from the electrolyte. A suitable
pair of rubber gloves (not the household type) should be worn when removing battery by hand.
2. Remove the battery from the vehicle.
3. Inspect battery carrier for damage caused by loss of acid from the battery. If acid damage is present, it is necessary to clean area with a solution of
clean warm water and baking soda. Scrub area with a stiff bristle brush. Wipe clean with a cloth moistened with ammonia or baking soda in water.
4. Clean the battery, especially the top with same solutions as described in step 3.
5. Inspect the battery case and cover for cracks. If cracks are present, battery must be replaced.
6. Clean the battery post with a suitable battery post cleaning tool.
7. Clean the inside surfaces of the terminal clamps with a suitable battery terminal cleaning tool. Replace damaged or frayed cables and broken
terminal clamps.
8. Install the battery in the vehicle.
9. Connect the positive and negative cables to the battery in the order of mention.
10. Tighten the clamp nut securely.
Battery Charging
BATTERY CHARGING
WARNING: When batteries are being charged, an explosive gas forms beneath the cover of each chef Do not smoke near batteries on charge
or which have recently been charged. Do not break live circuits at the terminals of the batteries on charge. A spark will occur where the five
circuit is broken. Keep all open flames away from the battery.
Battery electrolyte temperature may temporarily be allowed to rise to 55 °C (131 °F). Increase of electrolyte temperature above 55 °C (131 °F) is
harmful to the battery, causing deformation of battery cell, decrease in life of battery, etc.
