Sebring Coupe V6-3.0L VIN H (2005)
Starter Motor: Testing and Inspection
Magnetic Switch Pull-In Test
1. Disconnect the field coil wire from the M-terminal of the magnetic switch.
CAUTION: This test must be performed quickly (in less than 10 seconds) to prevent the coil from burning.

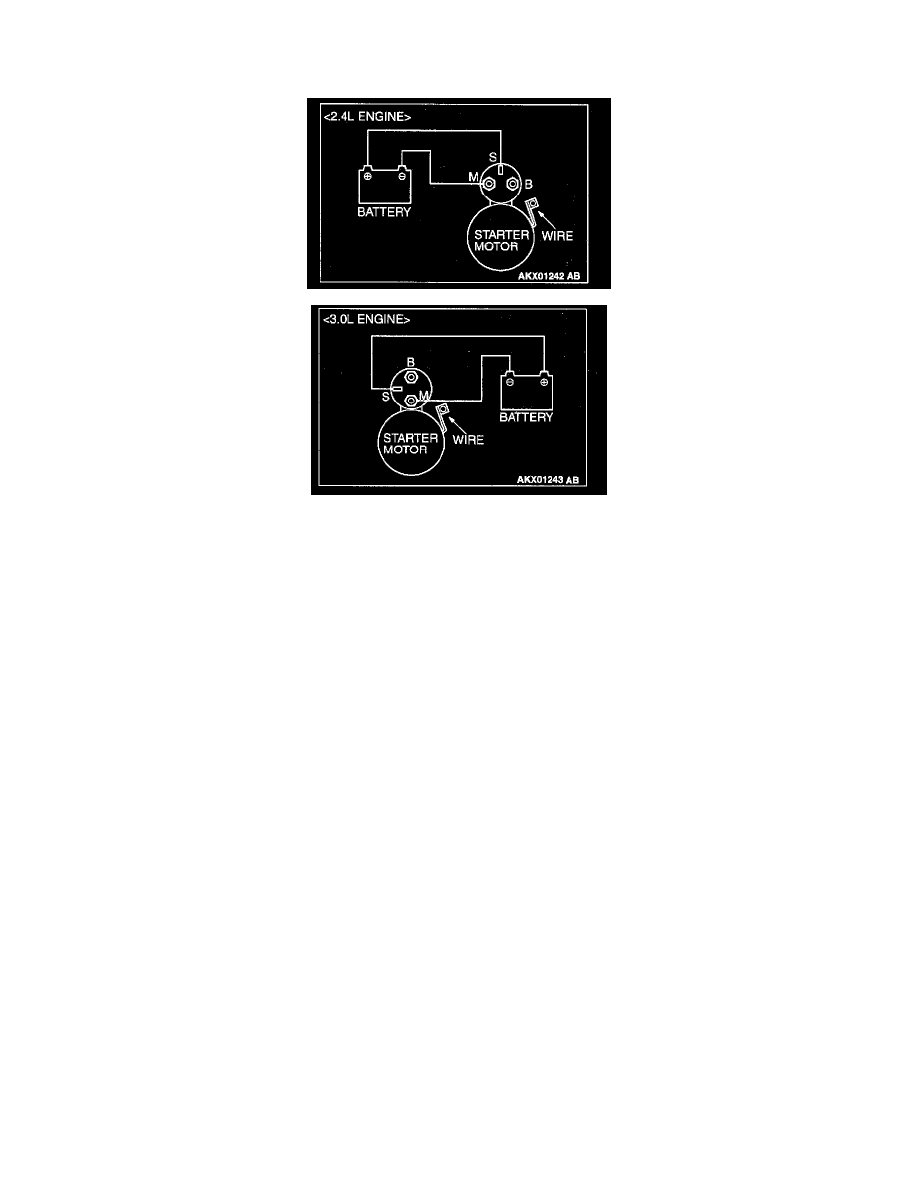

2. Connect a 12-volt battery between the S-terminal and M-terminal.
3. If the pinion moves out, the pull-in coil is good. If it doesn't, replace the magnetic switch.
