Sebring Coupe V6-3.0L VIN H (2005)
CAUTION: This test must be performed quickly (in less than 10 seconds) to prevent the coil from burning.
2. Connect a 12-volt battery between the M-terminal and body.
WARNING: Be careful not to get your fingers caught when pulling out the pinion.
3. Pull the pinion out and release. If the pinion quickly returns to its original position, everything is operating properly. If it doesn't, replace the
magnetic switch.
Inspection

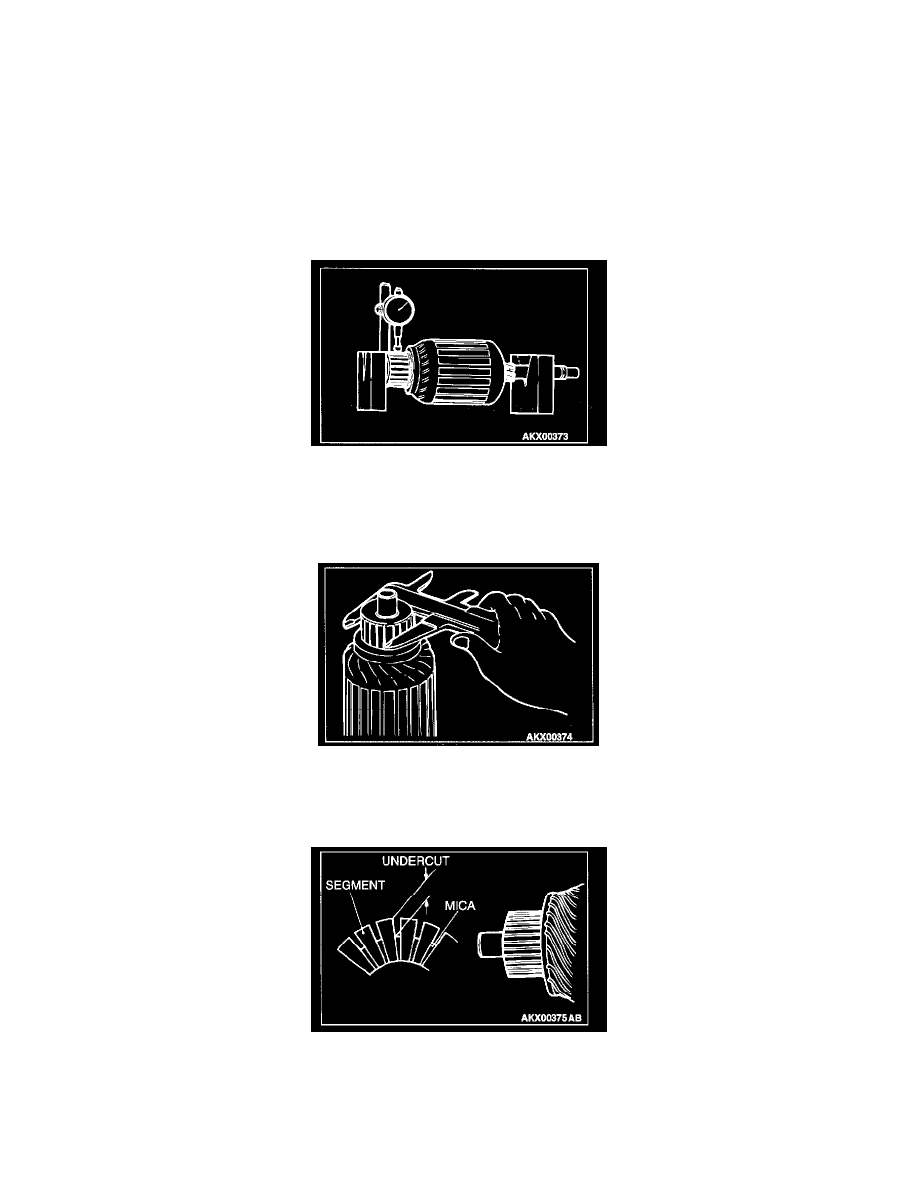

COMMUTATOR CHECK
1. Place the armature on a pair of V-blocks, and check the deflection by using a dial gauge.
Standard value: 0.05mm (0.002 inch)
Limit 0.1mm (0.004 inch)
2. Check the outer diameter of the commutator.
Standard value: 29.4 mm (1.16 inch)
Minimum limit: 28.8mm (1.13 inch)
3. Check the depth of the undercut between segments.
Standard value: 0.5 mm (0.02 inch)
Minimum limit: 0.2 mm (0.008 inch)
