Sebring Coupe V6-3.0L VIN H (2005)

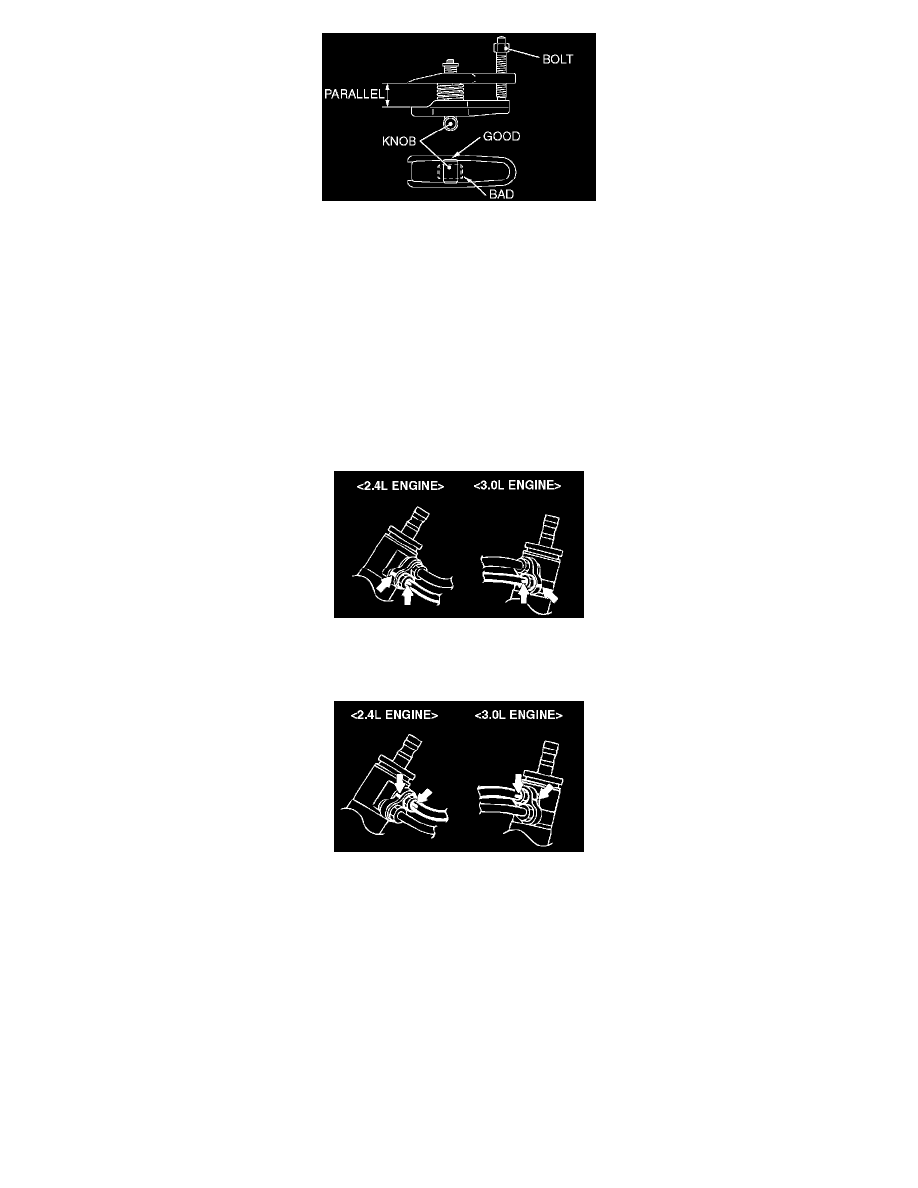

2. Turn the bolt and knob as necessary to make the jaws of special tool MB991897 parallel, tighten the bolt by hand and confirm that the jaws are
still parallel.
NOTE: When adjusting the jaws in parallel, make sure the knob is in the position shown in the Figure.
3. Tighten the bolt with a wrench to disconnect the tie rod end.
<<B>> GEAR BOX ASSEMBLY REMOVAL
CAUTION: Be sure not to damage the bellows and the tie rod end dust cover when removing the gear box assembly.
INSTALLATION SERVICE POINTS
>>A<< PRESSURE TUBE ASSEMBLY INSTALLATION
Align the marks on the pressure tube assembly and steering gear box, and install the pressure tube assembly.
>>B<< RETURN HOSE ASSEMBLY INSTALLATION
Align the marks on the return hose assembly and steering gear box, and install the return hose assembly.
INSPECTION
GEAR BOX TOTAL PINION TORQUE CHECK
CAUTION: When holding the steering gear box assembly in a vice, secure its mounting positions. If it is secured in any other place, the gear housing
may become deformed or damaged.
