Sebring Coupe V6-3.0L VIN H (2005)

Page 1
background image

Transmission Temperature Sensor/Switch: Testing and Inspection

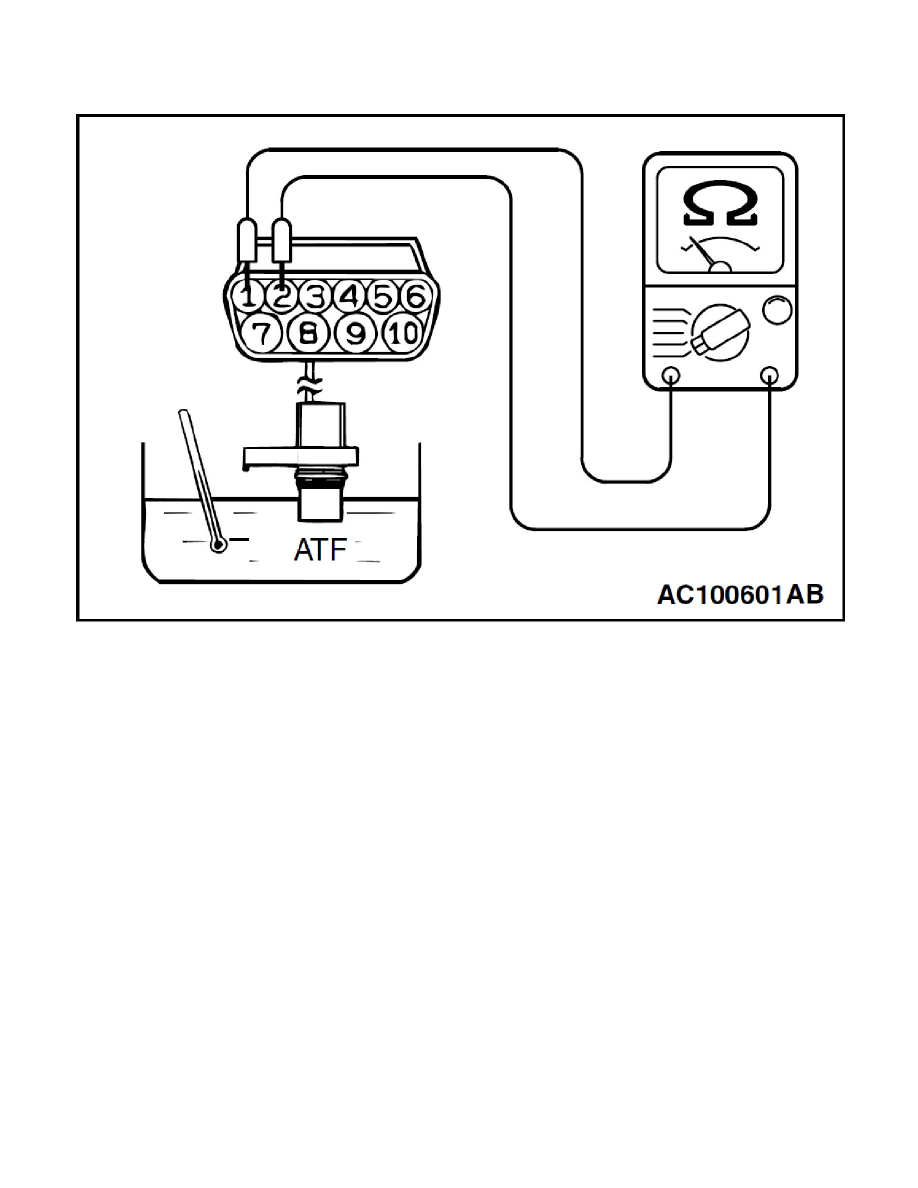

TRANSMISSION FLUID TEMPERATURE SENSOR CHECK

1. Remove the transmission fluid temperature sensor.

2. Measure the resistance between terminals 1 and 2 of the transmission fluid temperature sensor connector.

Standard value:
