Sebring Coupe V6-3.0L VIN H (2005)
Clutch Switch: Adjustments
CLUTCH INTERLOCK SWITCH CHECK AND ADJUSTMENT

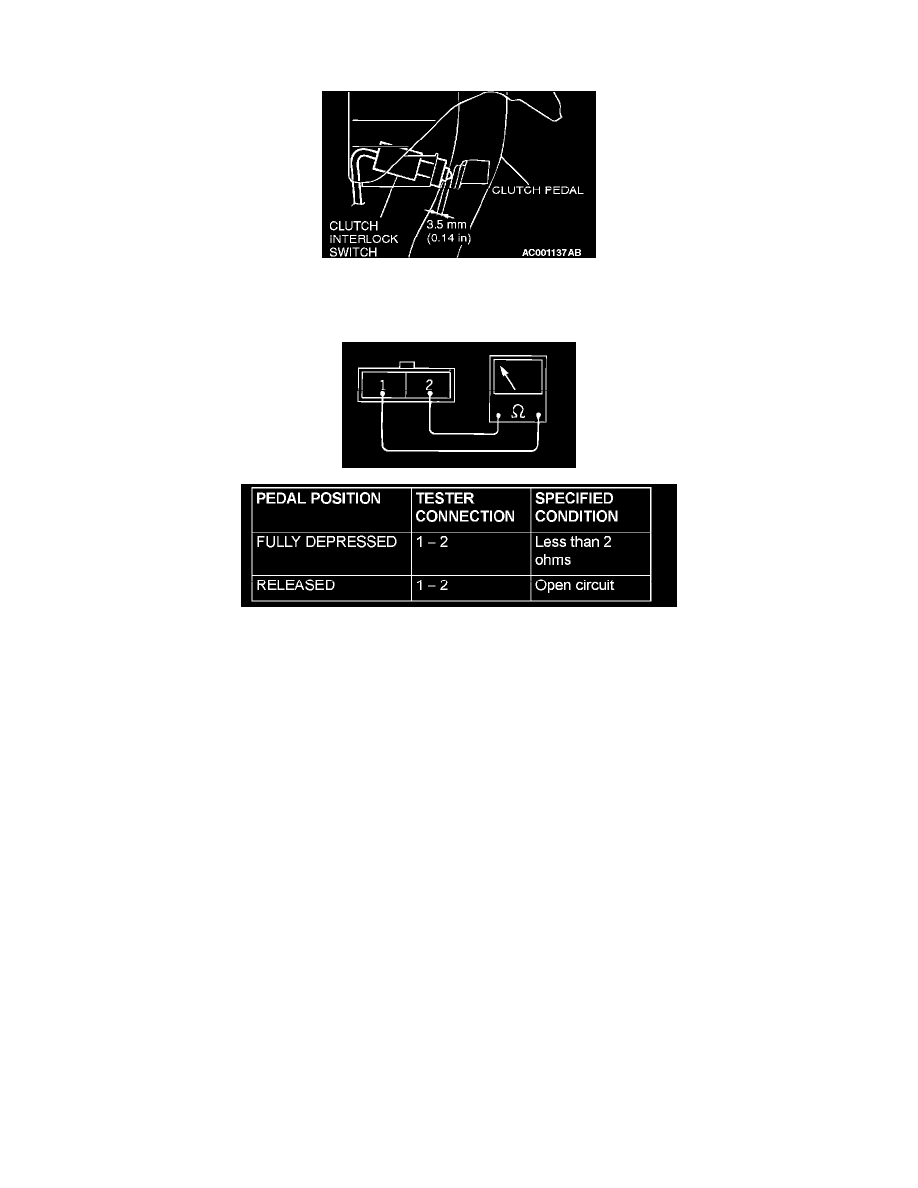

1. Check to be sure that the interlock switch is as shown in the illustration when the clutch pedal is depressed at its full stroke 130 mm (5.1 inch). If
the specified dimension is not met, loosen the clutch interlock switch 1/4 turns counterclockwise. Then slide the switch to the specified dimension,
and turn the switch 1/4 turns clockwise to lock.
2. Connect an ohmmeter to the interlock switch connector, and then check for continuity when the clutch pedal is fully depressed and when it is
released outward.
