Page 7

background image

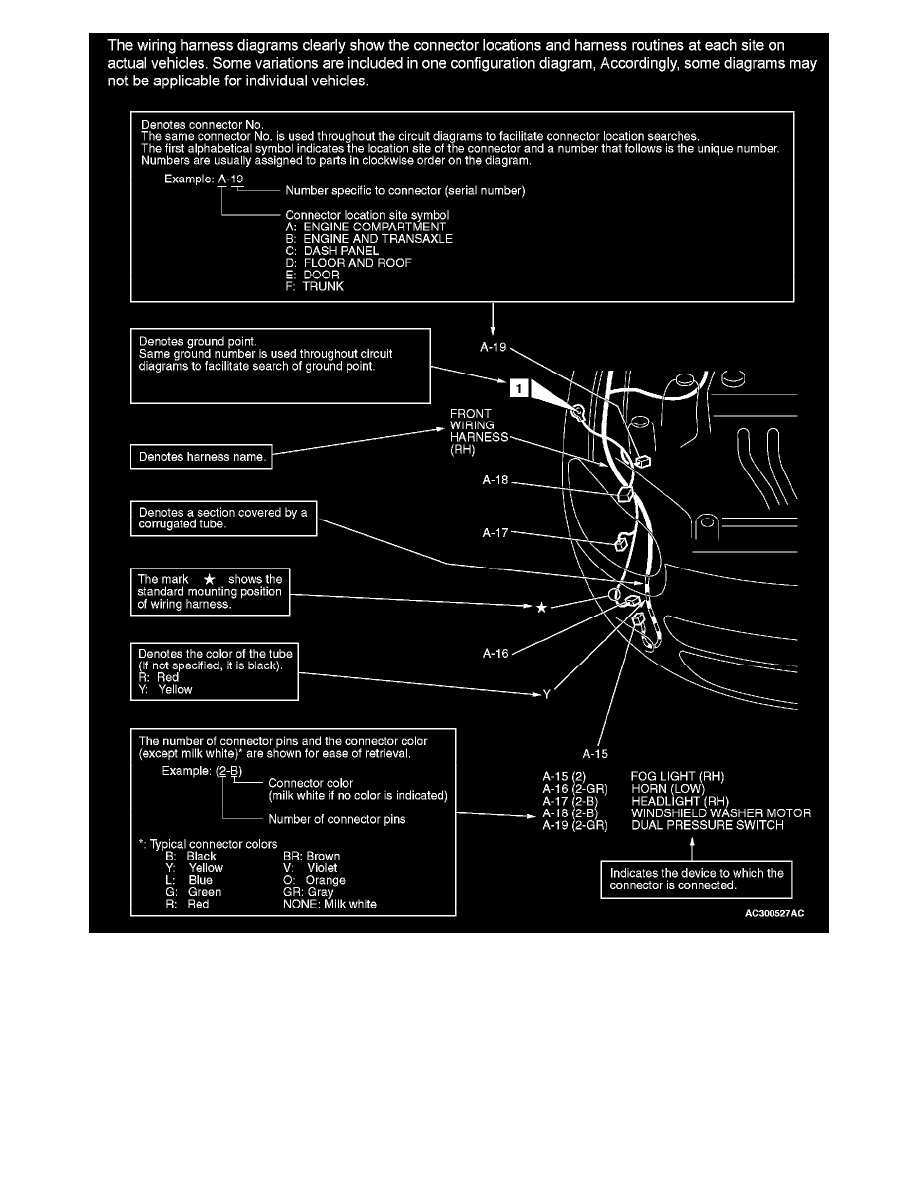

How To Read Configuration Diagrams

Wiper and Washer Systems
Relays and Modules - Wiper and Washer Systems
Wiper Control Module / Diagrams / Diagram Information and Instructions
Page 7418
