Windshield Wiper/Washer Switch Test|Page 7514 > < Windshield Wiper/Washer Switch Test

Sebring Coupe V6-3.0L VIN H (2005)

Page 2
background image

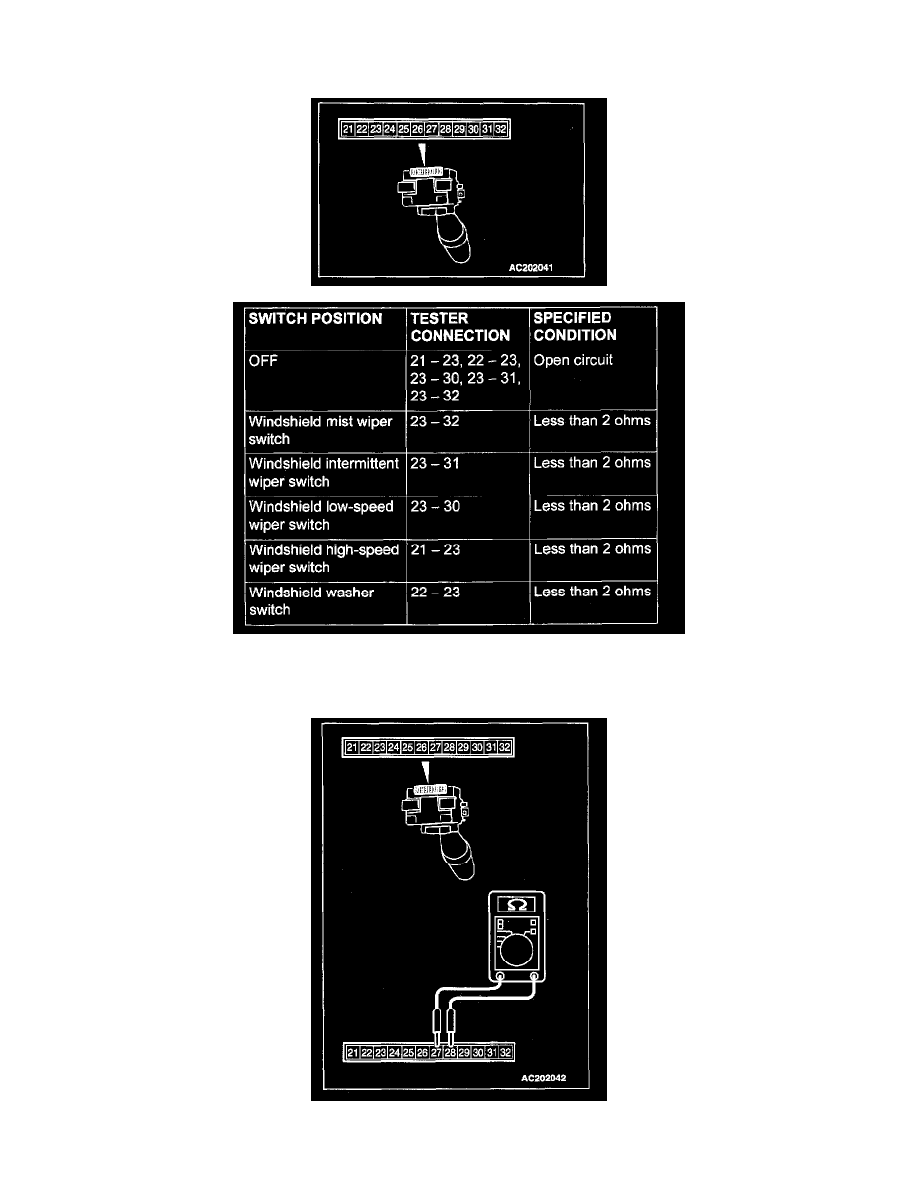

Check that the resistance varies between 0 and 1 kilo ohm when the windshield intermittent volume is turned from FAST to SLOW by measuring
resistance between connector terminals 27 and 28 at the column switch.
