Town & Country V6-3.8L VIN L (2006)
Front Door Window Glass Weatherstrip: Service and Repair
Front Door Glass Run Weatherstrip
FRONT DOOR GLASS RUN WEATHERSTRIP
REMOVAL
1. Remove door frame closeout moldings.
2. Pull weatherstrip from glass run channel at rear of door frame, working from the bottom to the top.
3. Disengage clip attaching weatherstrip to door frame.

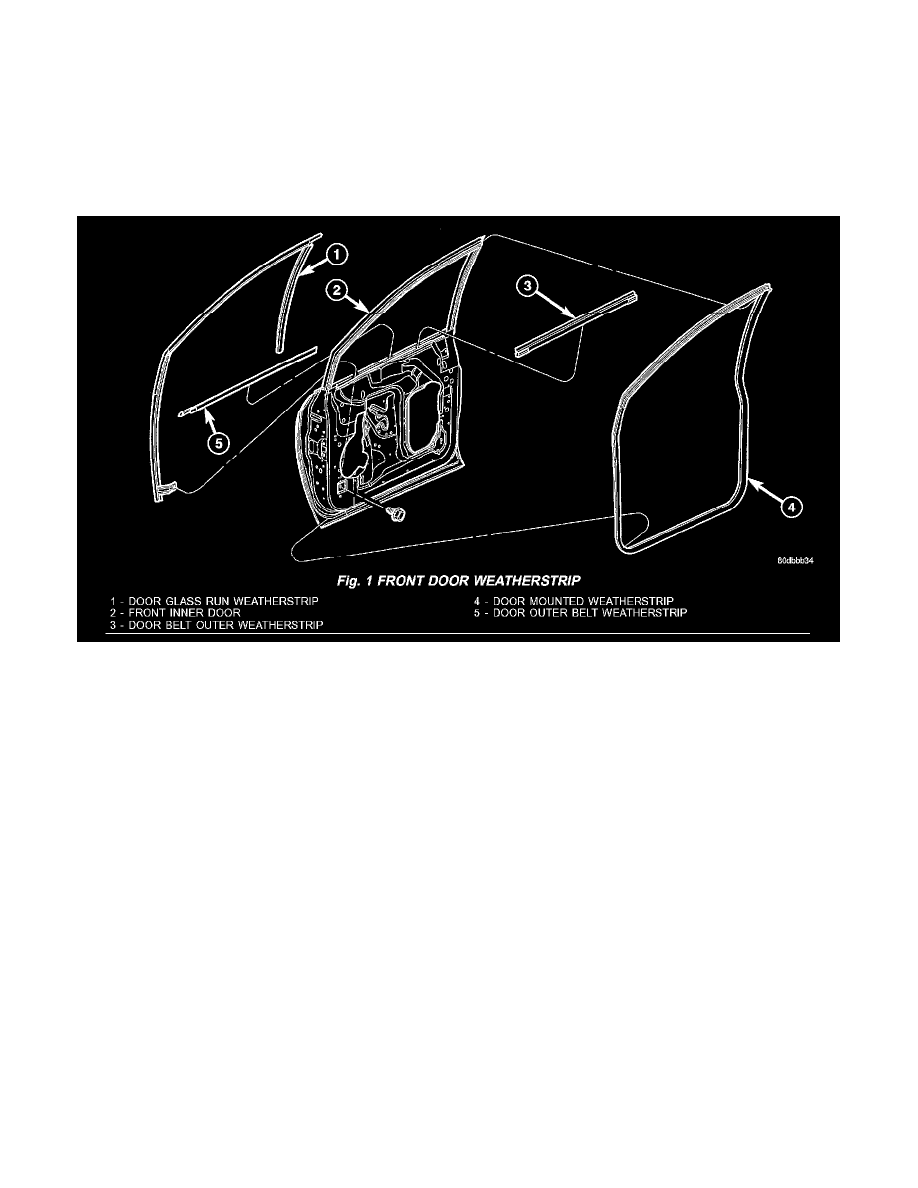

Fig. 1
4. Pull weatherstrip from lip along top of door frame (Fig. 1).
5. Remove door trim panel.
6. Remove door speaker, if equipped.
7. Remove watershed as necessary to gain access to screw attaching front lower corner of glass run weatherstrip to inner door panel.
8. Remove screw attaching glass run weatherstrip to inner door panel.
9. Remove inner belt weatherstrip.
10. Pull weatherstrip from front glass run channel.
11. Remove glass run weatherstrip from vehicle.
INSTALLATION
1. Position glass run weatherstrip on vehicle (Fig.1).
2. Insert A-pillar section of the glass run into door through belt line and lower to bottom of door using molded corners as a guide.
NOTE: Care must be taken not to damage the medal bracket when installing through the belt opening.
3. Locate the top corner portion of the B-pillar glass run section onto the roll frame and slide it up until the part bottoms out on the header portion of
the roll frame.
NOTE: Do not JAM the corner into place.
4. Install the entire B-pillar glass run onto roll frame.
5. Working from the B-pillar forward install the first eight to twelve inches of the header glass run onto the roll frame.
NOTE: Use care not to push or pull the header section and the molded corner out of location.
6. Install fully the entire A-pillar glass run section by indexing the molded corner detail into the roll frame. Slide the glass run up the A-pillar until
