Town & Country V6-4.0L (2008)

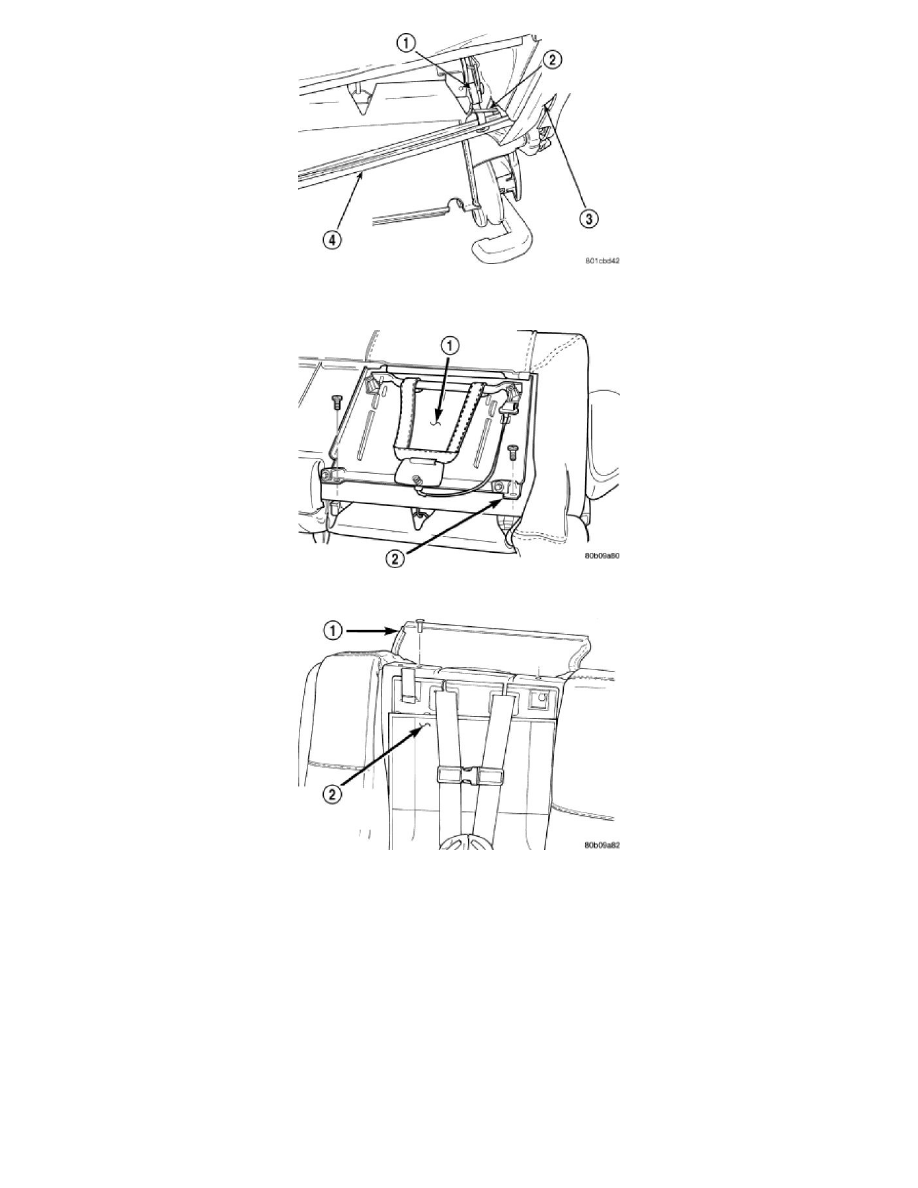

2. Install the hinge interlock lever (2) located near the seat back frame rail (4) at the rear of the seat back (3) over the outboard child restraint seat
hinge (1).
3. Install the screws attaching the child restraint seat module (1) to seat back frame lower rail (2).
4. Install the screws attaching top of child restraint seat module (2) to seat back frame upper rail. Tighten to 7 Nm (62 in. lbs.).
5. Position the upper bolster (1) to the child restraint seat module.
