Radiator Cooling Fan Motor Relay: Locations

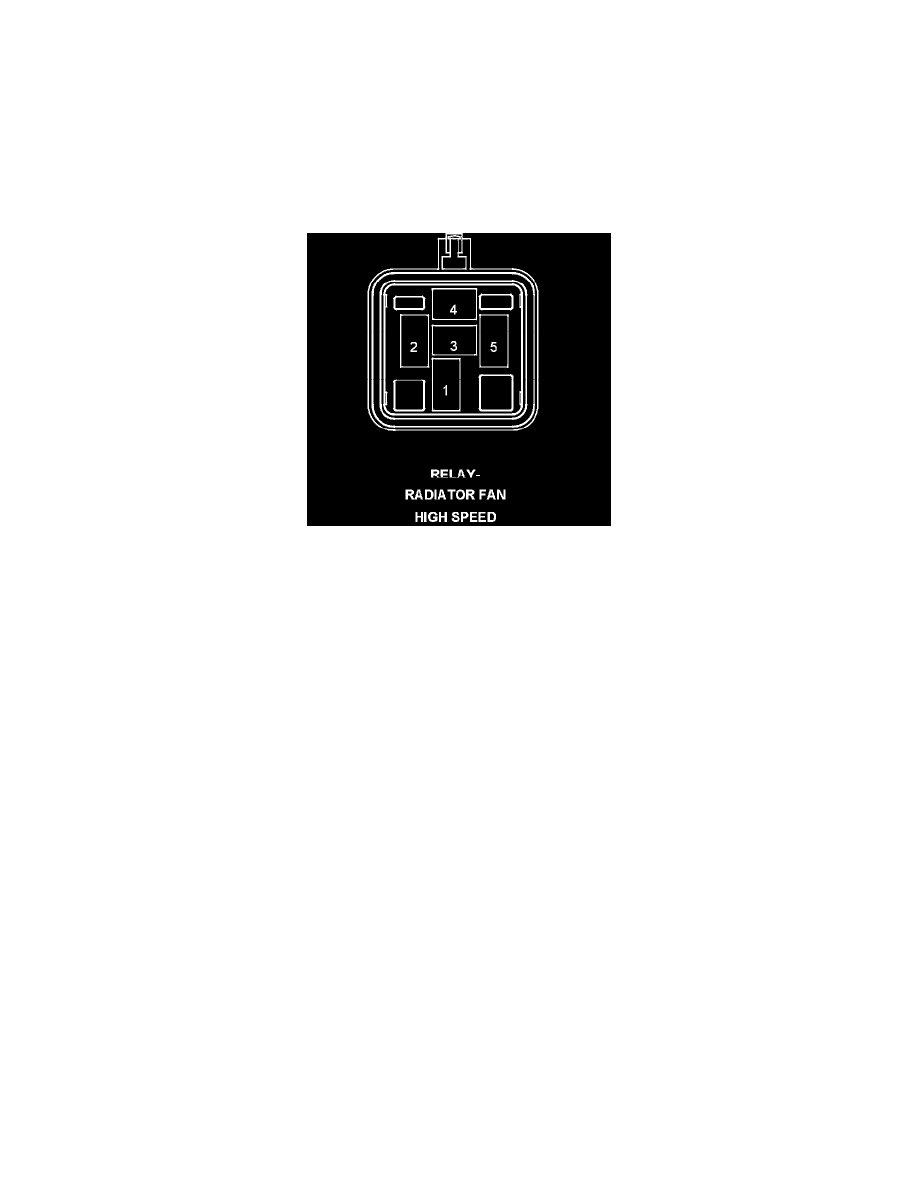

Relay-Radiator Fan High Speed

Component ID:

256

Component :

RELAY-RADIATOR FAN HIGH SPEED

Connector:

Name :

RELAY-RADIATOR FAN HIGH SPEED

Color :
# of pins :

5

Pin

Circuit

Description

  1

A16 10RD/BR

FUSED B(+)

  2

W24 20BR/OR

HEADLAMP WASHER RELAY CONTROL

  3

-

-

  4

N173 10DB/VT

RAD FAN CONTROL

  5

K175 20BR/LB

RAD FAN HIGH SPEED CONTROL

Component Location - 4
