Town & Country Van AWD V6-201 3.3L VIN R FI (1991)
Transmission Speed Sensor: Service and Repair
CAUTION: When disconnecting speed sensor connector, be sure that the weather seal does not fall off or remain in old sensor.

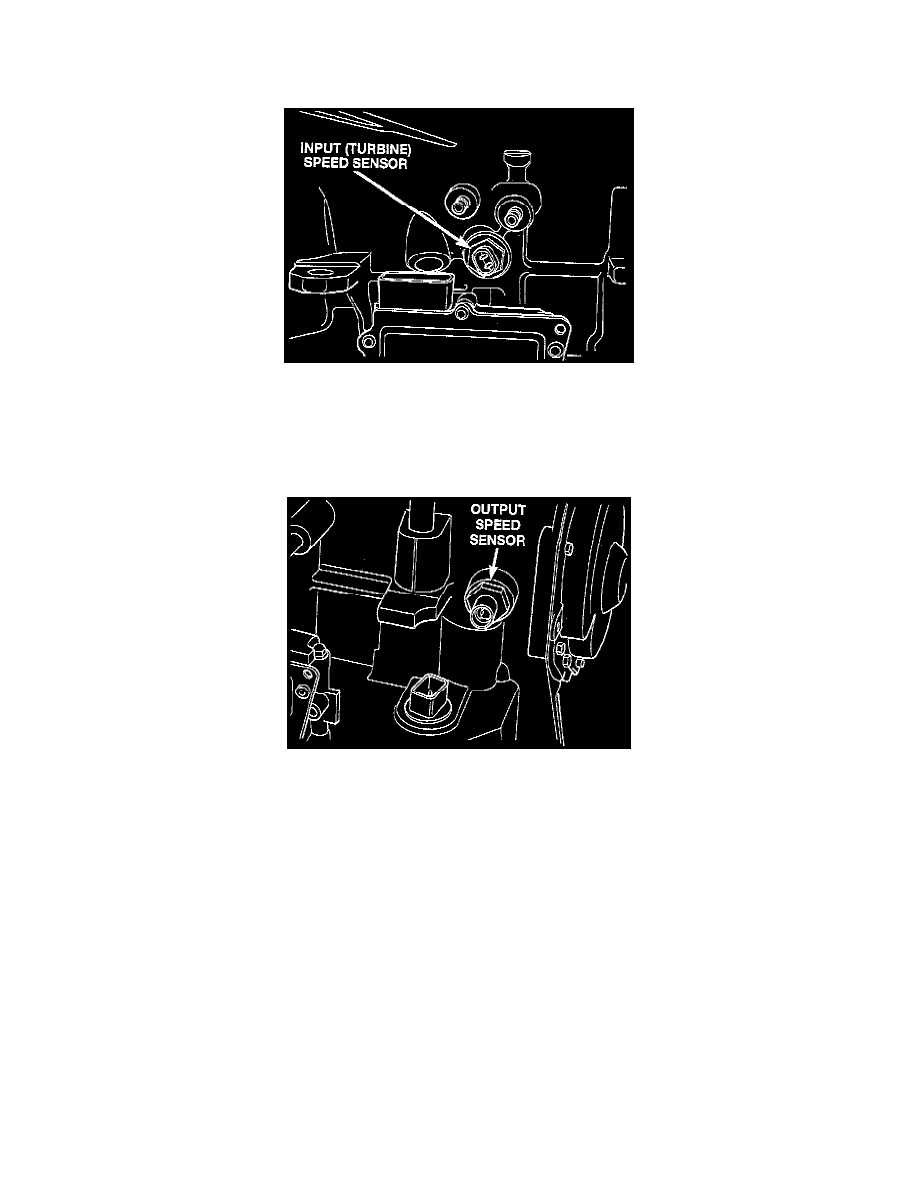

Input (Turbine) Speed Sensor
INPUT
The input speed sensor is located to the left of the manual shift lever.
CAUTION: When disconnecting speed sensor connector, be sure that the weather seal does not fall off or remain in old sensor.
Output Speed Sensor
OUTPUT
The output speed sensor is located to the right of the manual shift lever.
