Page 3
background image

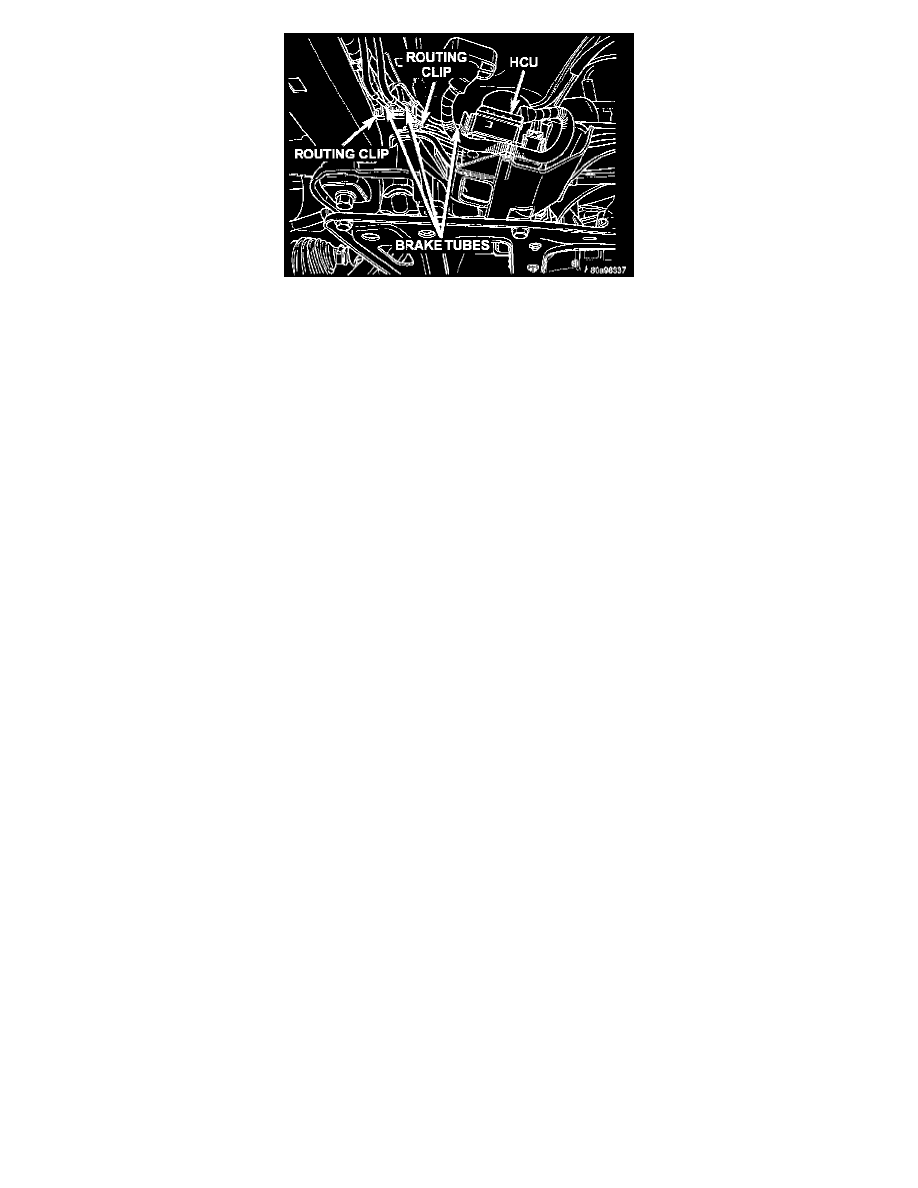

Brake Tube Routing Clips

7. Install the routing clips on the brake tubes.
8. Lower vehicle.
9. Connect negative cable back on negative post of the battery.

10. Bleed the base brakes and the ABS brakes hydraulic system.
11. Road test vehicle to ensure proper operation of the base and ABS systems.
