Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)

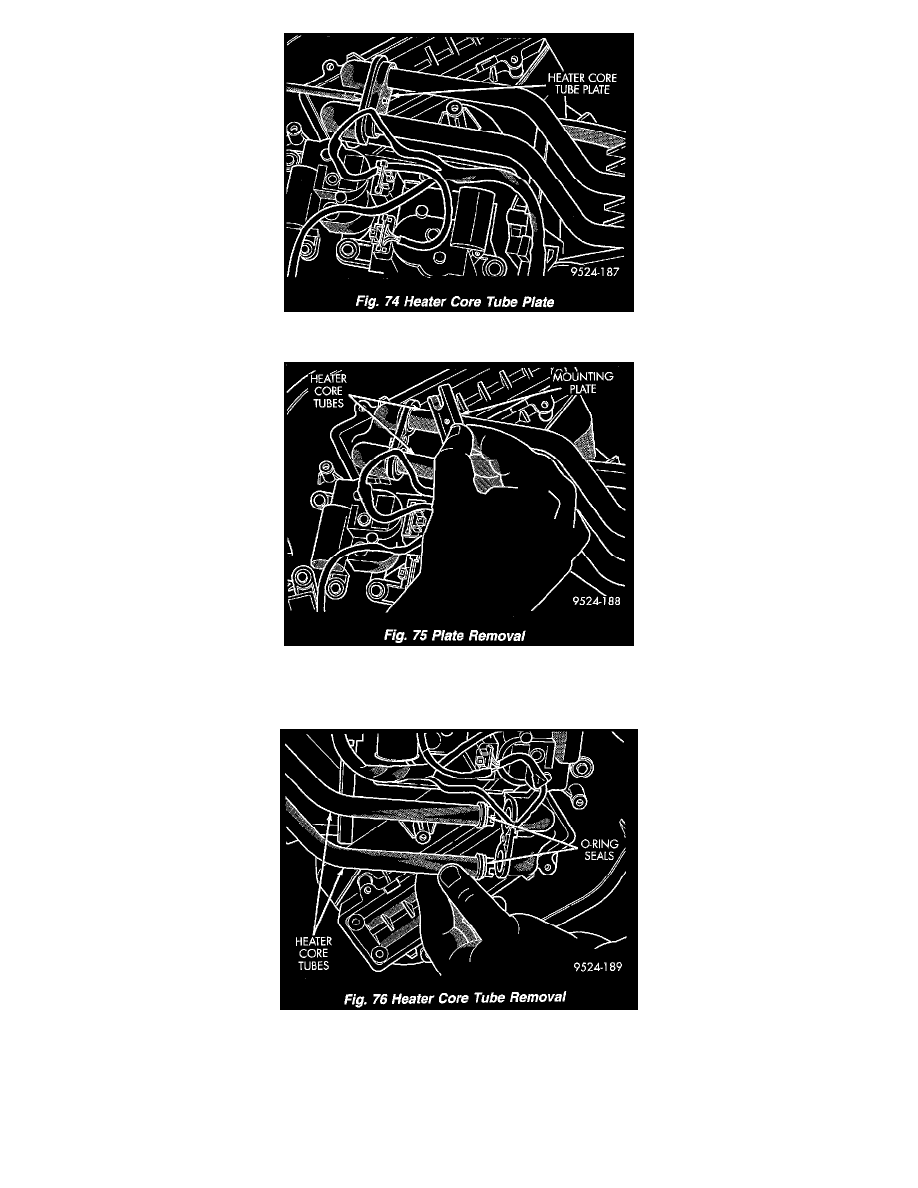

Heater Core Tube Plate
Plate Removal
3. Remove heater core tube plate.
Heater Core Tube Removal
4. Remove heater core tubes.
5. Depress heater core retaining clips at housing. When reinstalling core use screws to fasten the heater core to the housing.
6. Slide heater core out of the housing.
